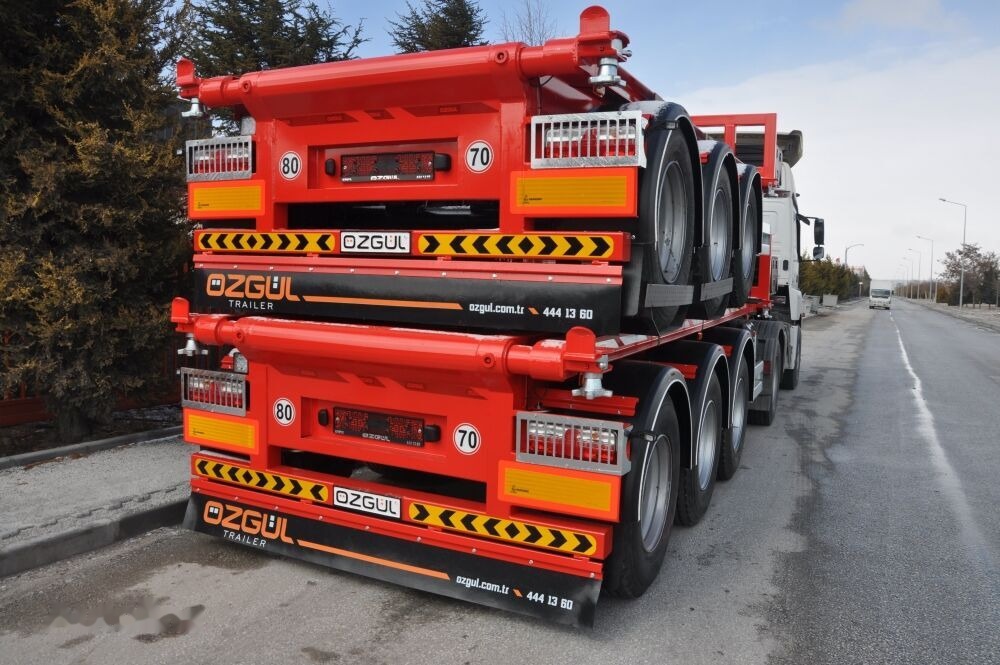

Semi-trailer pengangkut mobil OZGUL TIPPING TYPE CONTAINER TRAILER

RACK

It is manufactured in 20 FEET container size

Strengthened “I” section centre members are welded by a submerged welding machine. They are welded between 120/15 mm bottom or top flat steel and 5 mm hub plate

These racks are supported by binding with axle beams against being twisted with each other

PORTABLE CONTAINER SIZES

1x20’

CONTAINER LOCK

4 locks

HYDRAULIC

Container box movement is provided by level 4500-5 heavy telescopic cylinder which provides 45o tilt angle .(LIFT COLD DRAW SEAMLESS PIPE )

Oil reservoir has suction filter

damper pneumatic remote

two speed lowering valve and a limit control security.(Mounted on camion chassis side)

Pump

direction valve

limit valve and other equipments are installed completely

AXLE SHAFT

3 axle shafts with the capacity of 12 tons are used

There are brake shoes and heavy brake levers suitable to TSE norms

SUSPENSION

Parabolic double deck Z springs and dashpots

ELEVATING FRONT AXLE SHAFT

Remote operated elevating system for front axle shaft in cabin

TIRES AND RIMS

385/65 R22,5 tires 6+1

ELECTRICAL EQUIPMENT

It is suitable for SAE standards and Tüv regulations

Electricity is provided by 7 pin plug from vehicle

There are necessary traffic advisory and stoplights on both sides

There are backlights

brake lights

license plate lamps

trailer reflectors and orange warning lights on the sides

BRAKE EQUIPMENT

71/320/ewg ff brake system according to EC standards

Automatic slacks

4 spring brake chambers and 2 service brake chambers

RSS that provides safe driving system against 2S / 2M EBS and rollover (Balance Control System)

Air leaks in trailer are blocked by Sweden patented Ruffels union system

KING-PIN

Steel king-pins which is 2” according to DIN 74080 standards and 3½” 42 CRMO4 according to DIN 74083 standards are used

LEGS

Two speed

telescopic

mechanical conveyor legs

with the capacity of 24 tons

PAINT

Rack and superstructure are painted in paint drying oven by Washing + Sanding + 2+1 coat Acrylic Paint

COLOR

It will be specified according to customer request

STANDARD ACCESSORIES

Multi-piece plastic fenders that covers trailing axle tires

1 plate tool box

Control Panel(Mob

air clock

access ramp lever)

Plastic water tank

Roller spare tire conveyor

Aluminum bike impact absorber

Mounting and mounting space

OPTIONAL SPECIFICATIONS

European axle shaft group and all kind of equipments

Aluminum rims

Fire extinguisher closet and fire extinguisher tube

Tire mark according to request

RAL color codes according to request
