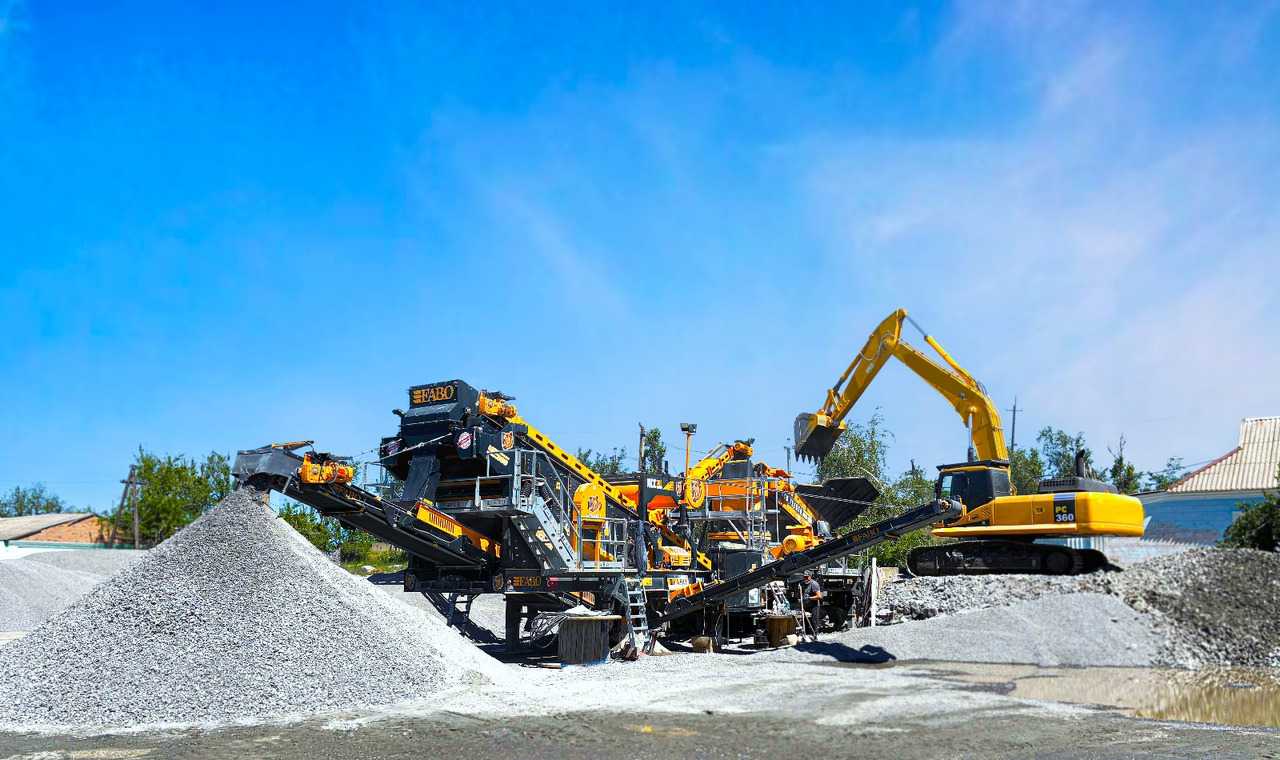

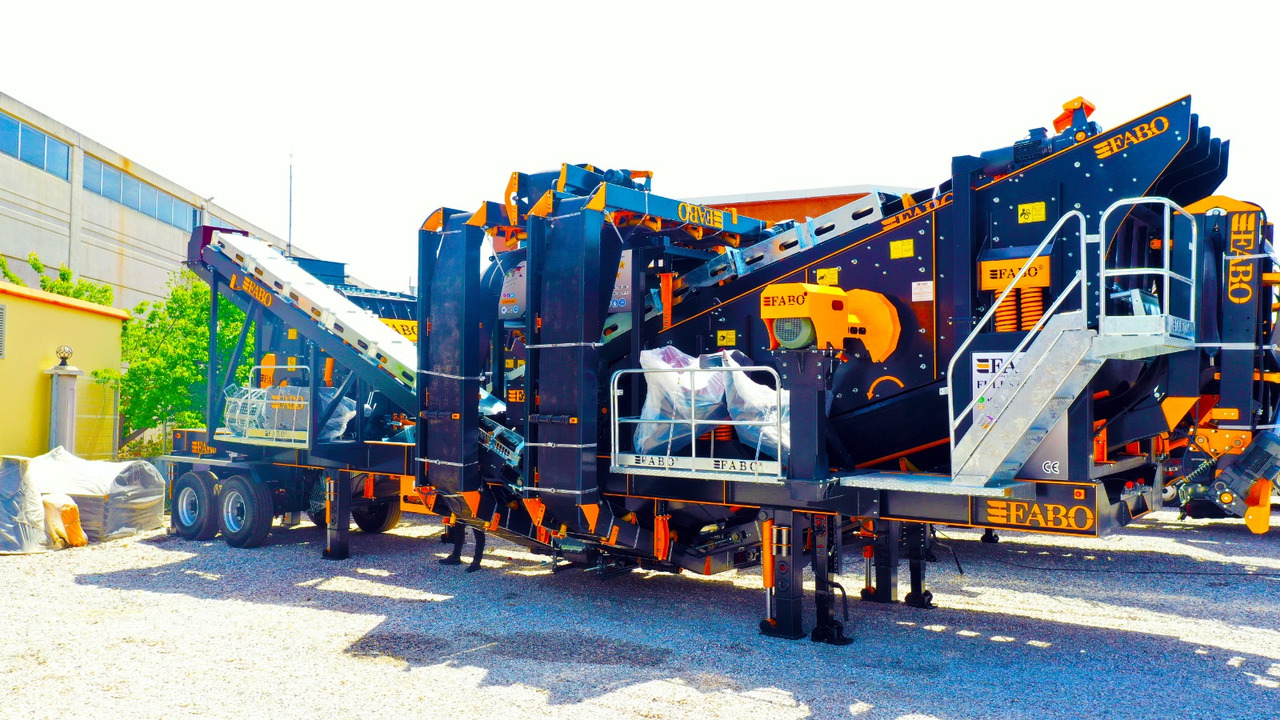

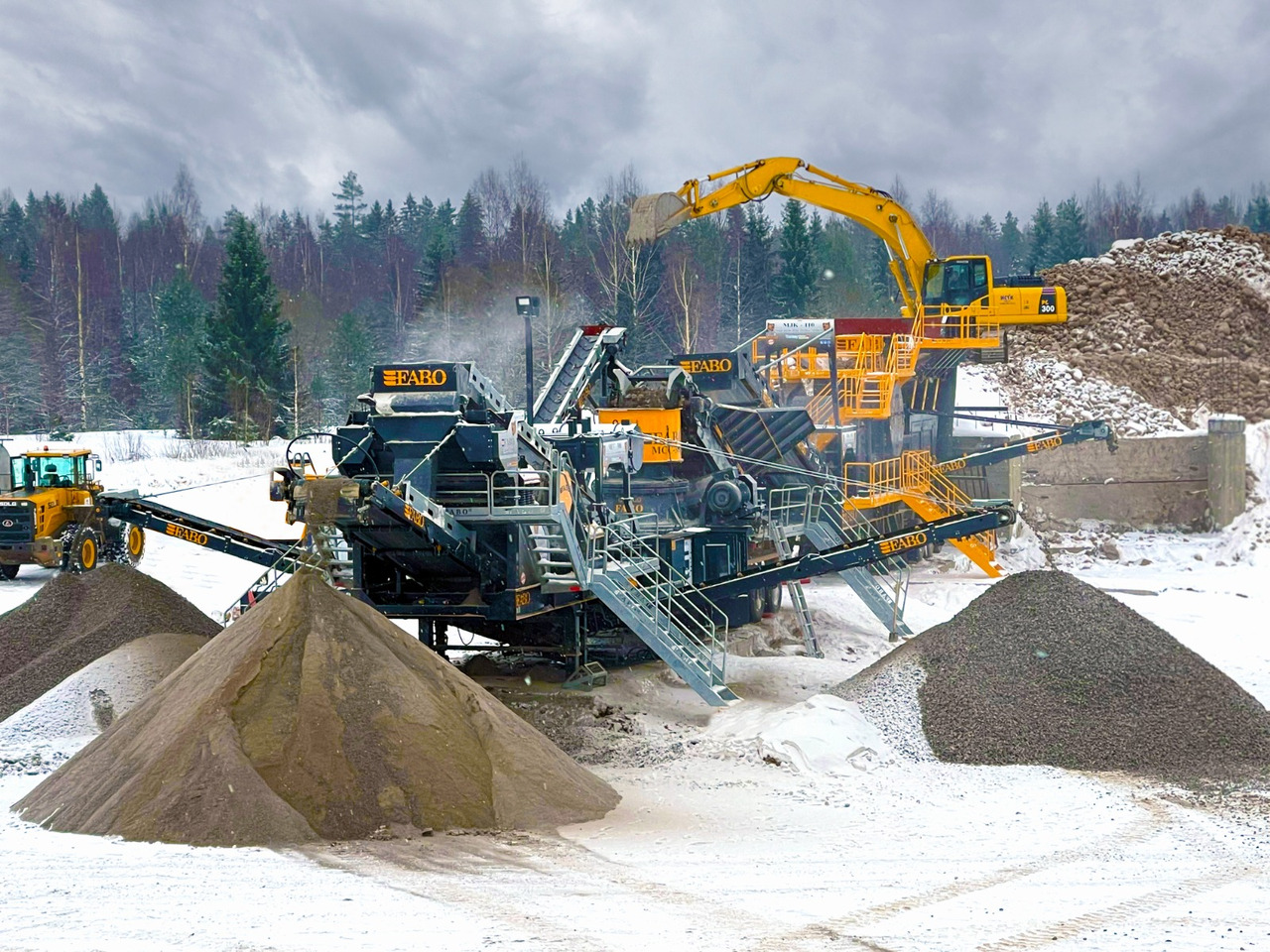

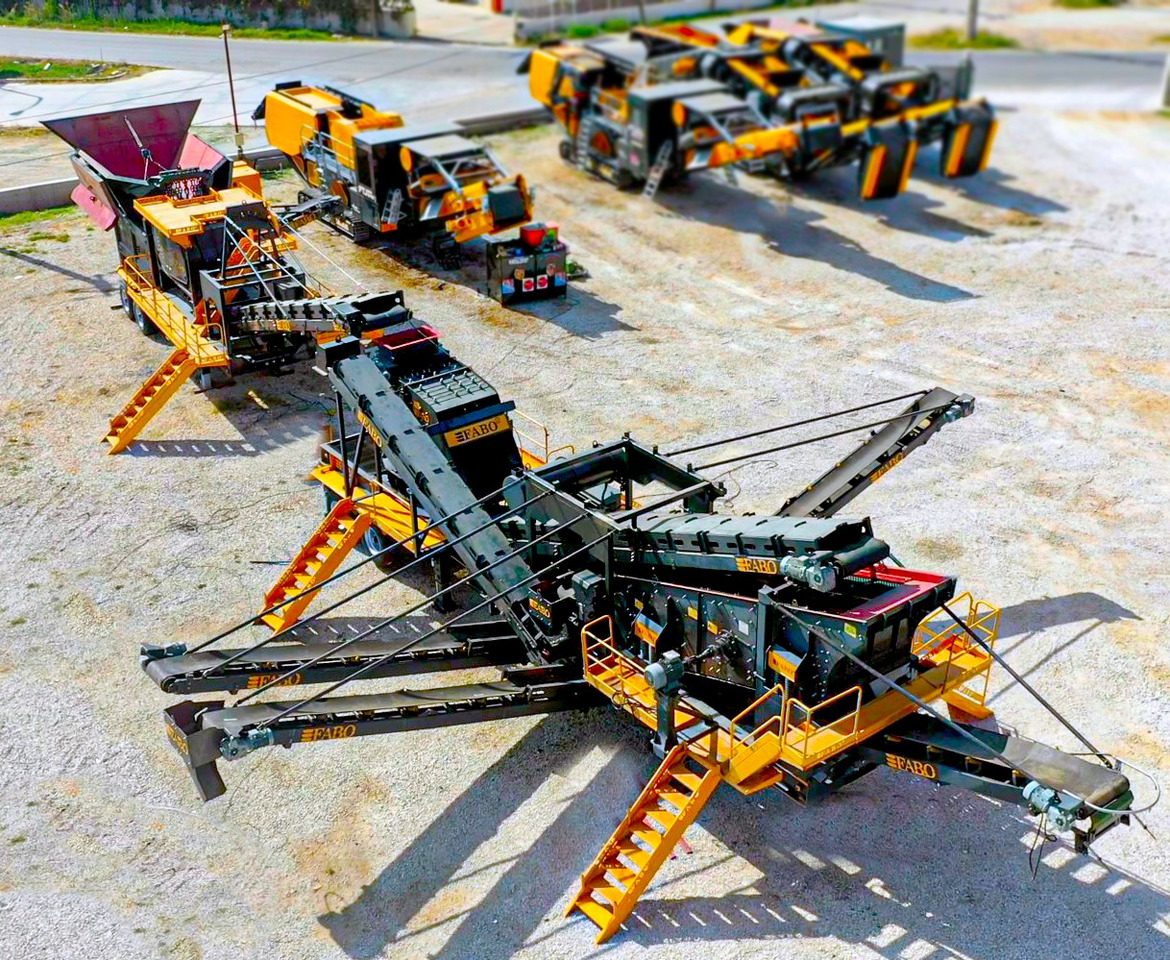

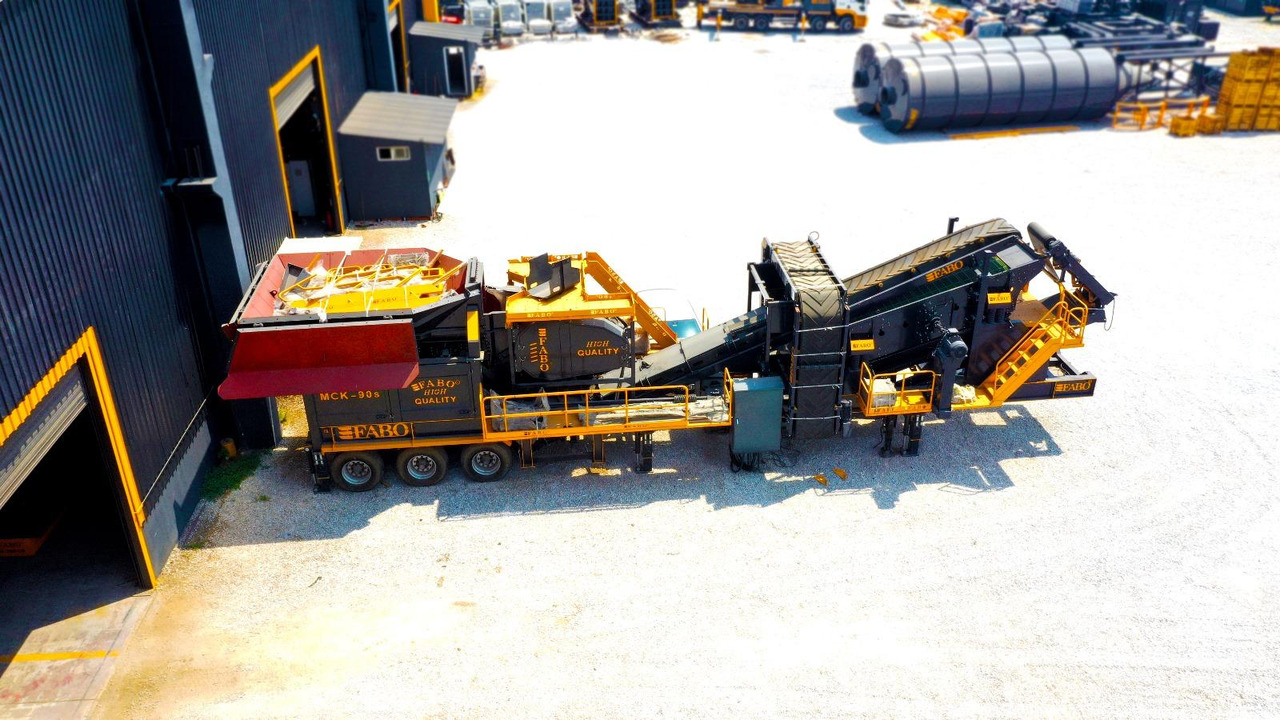

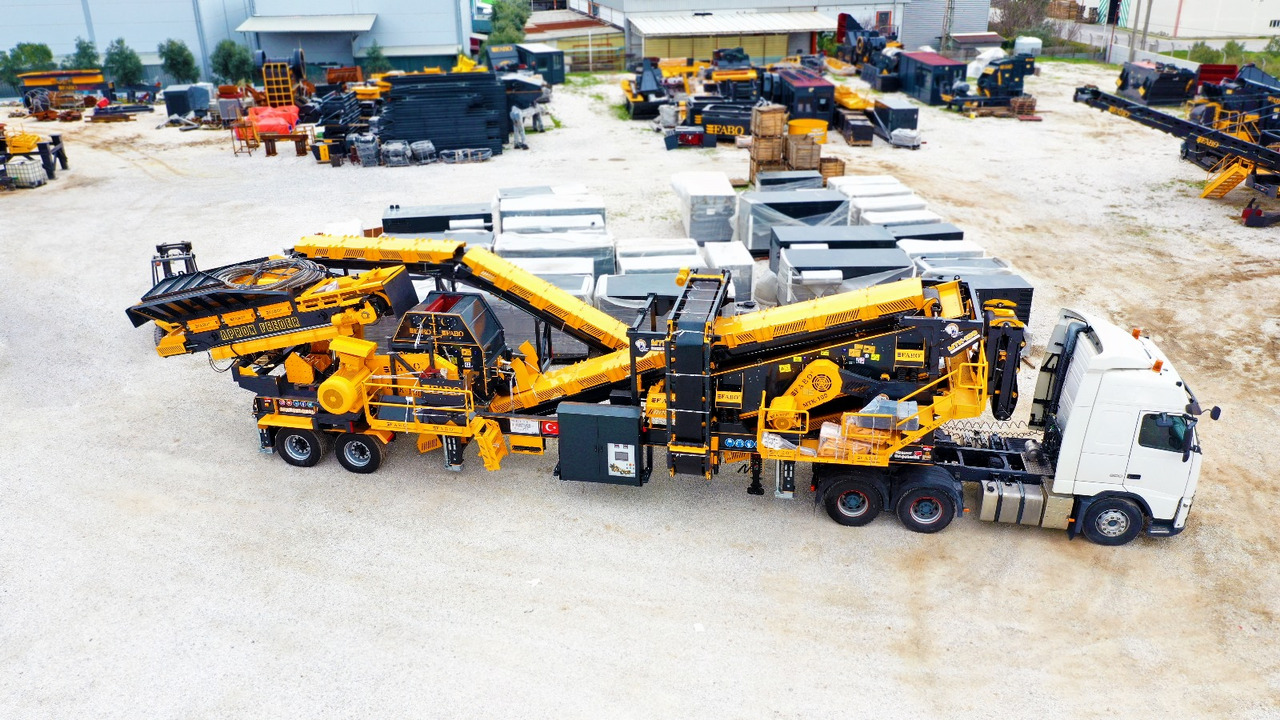

Tanaman penghancur mobil baru FABO Mobile crusher

• All of our products are made with care and covered for 1 year warranty!
• Installation and Operator Training FREE

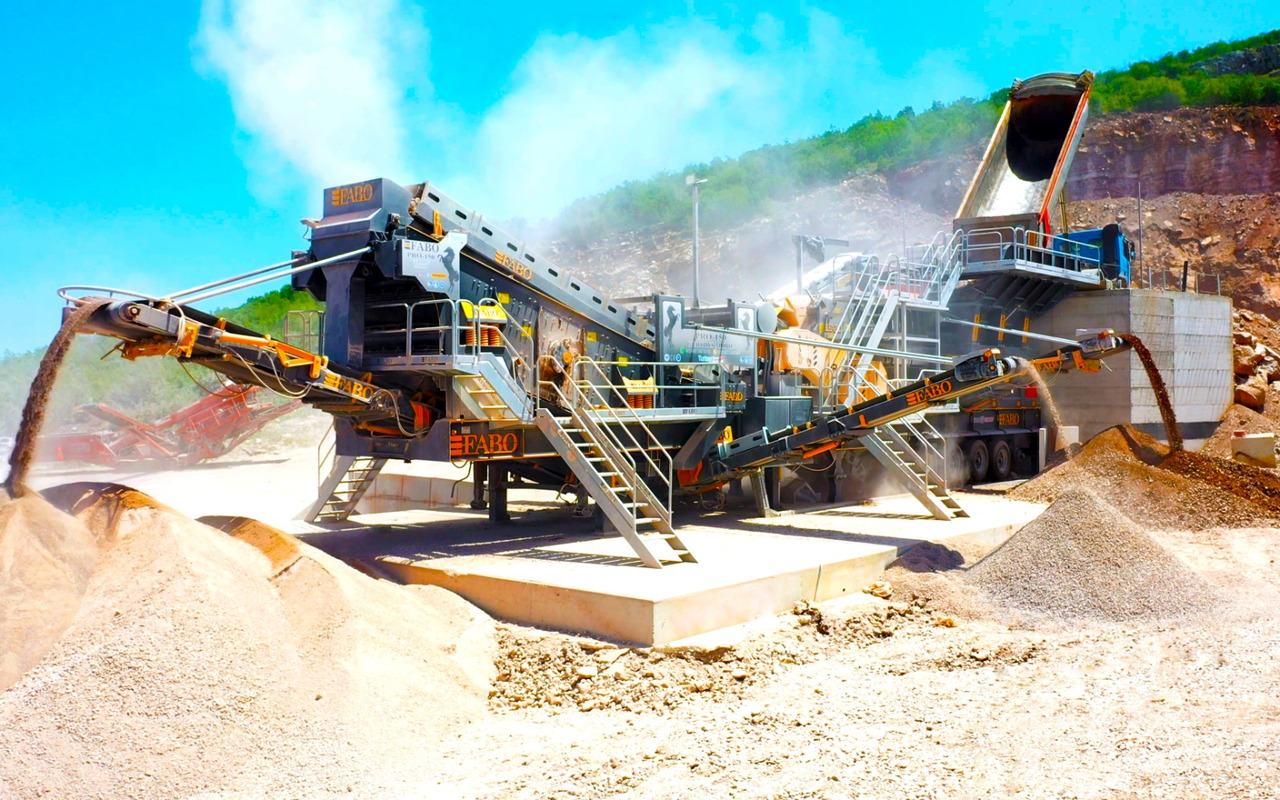

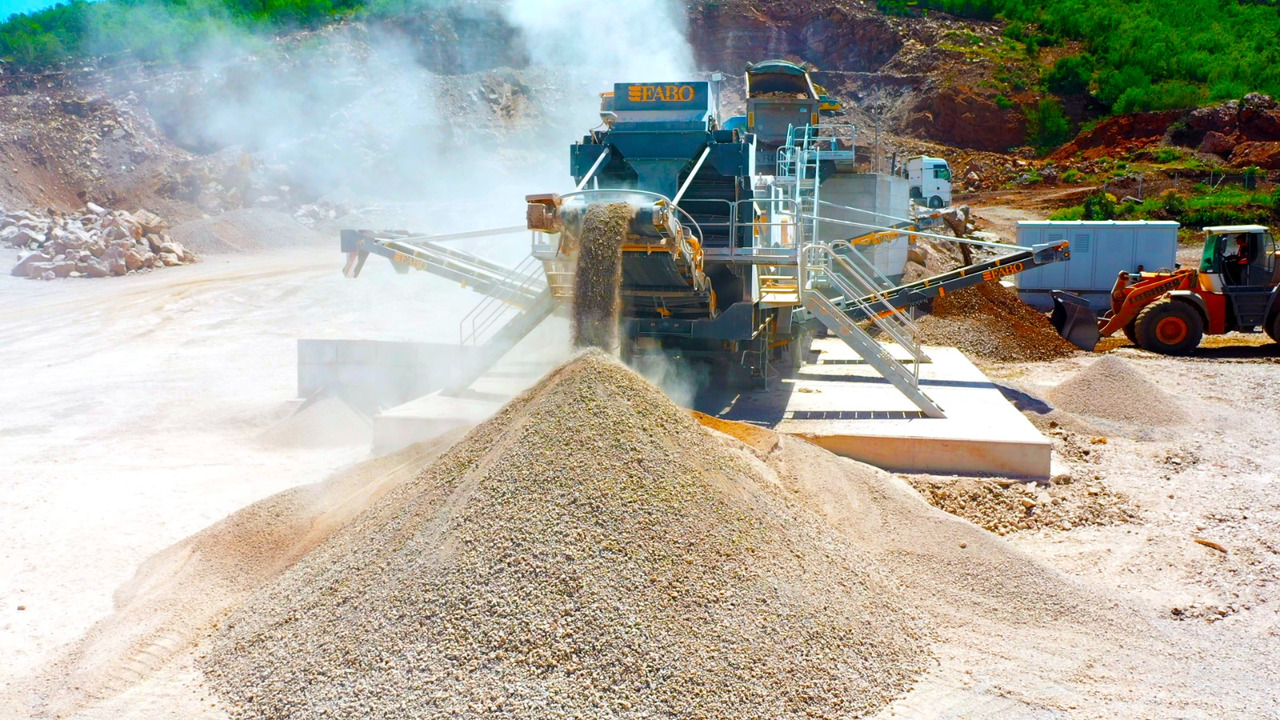

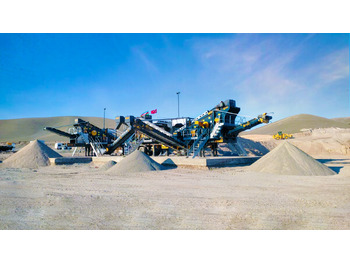

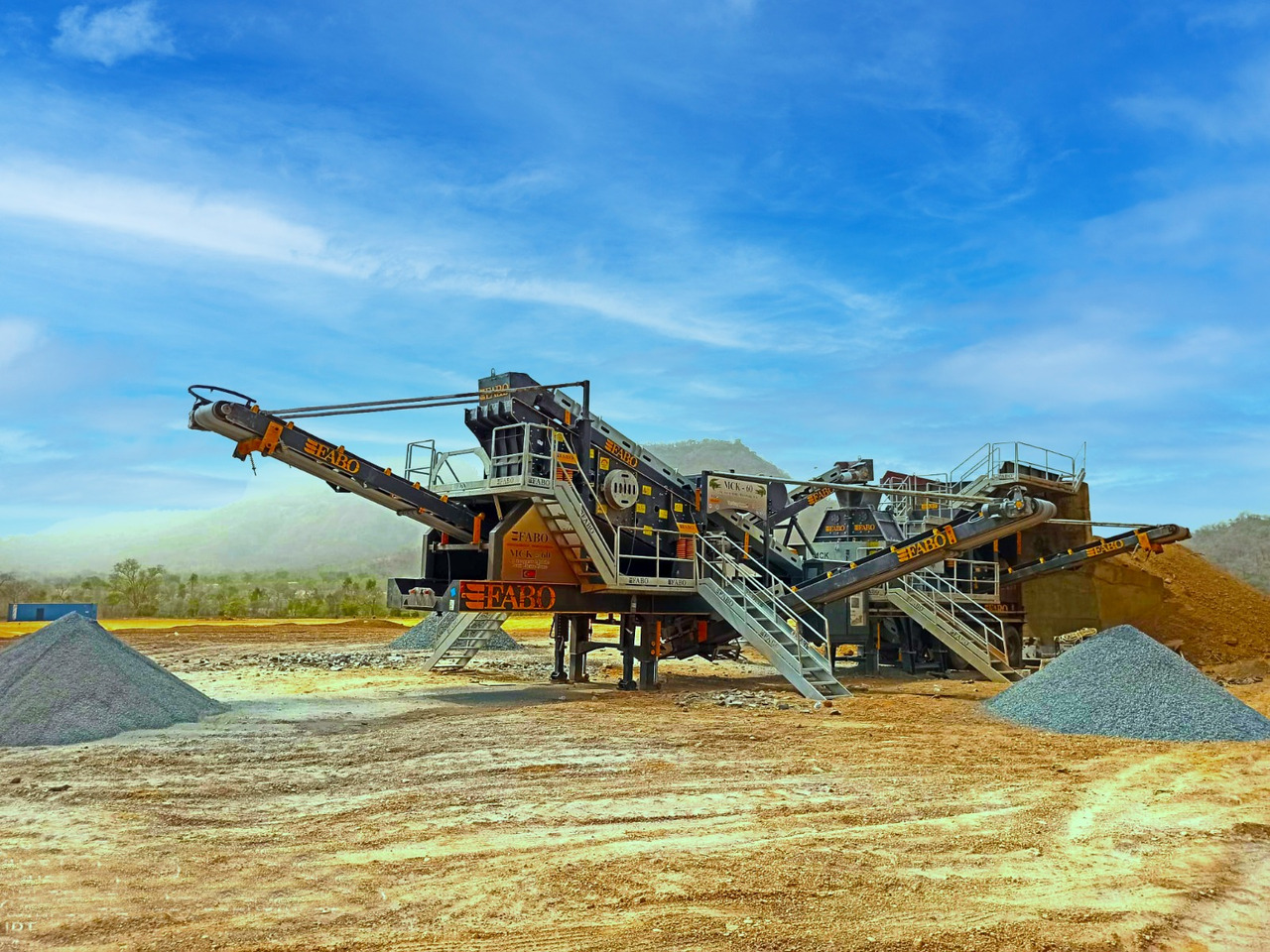

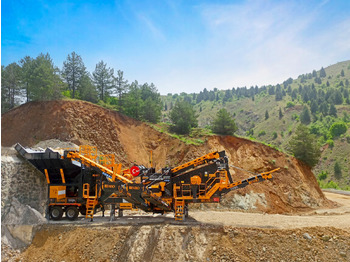

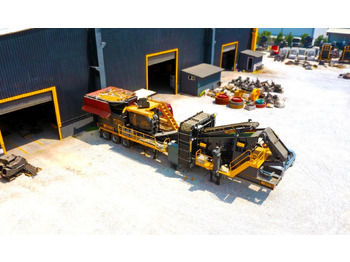

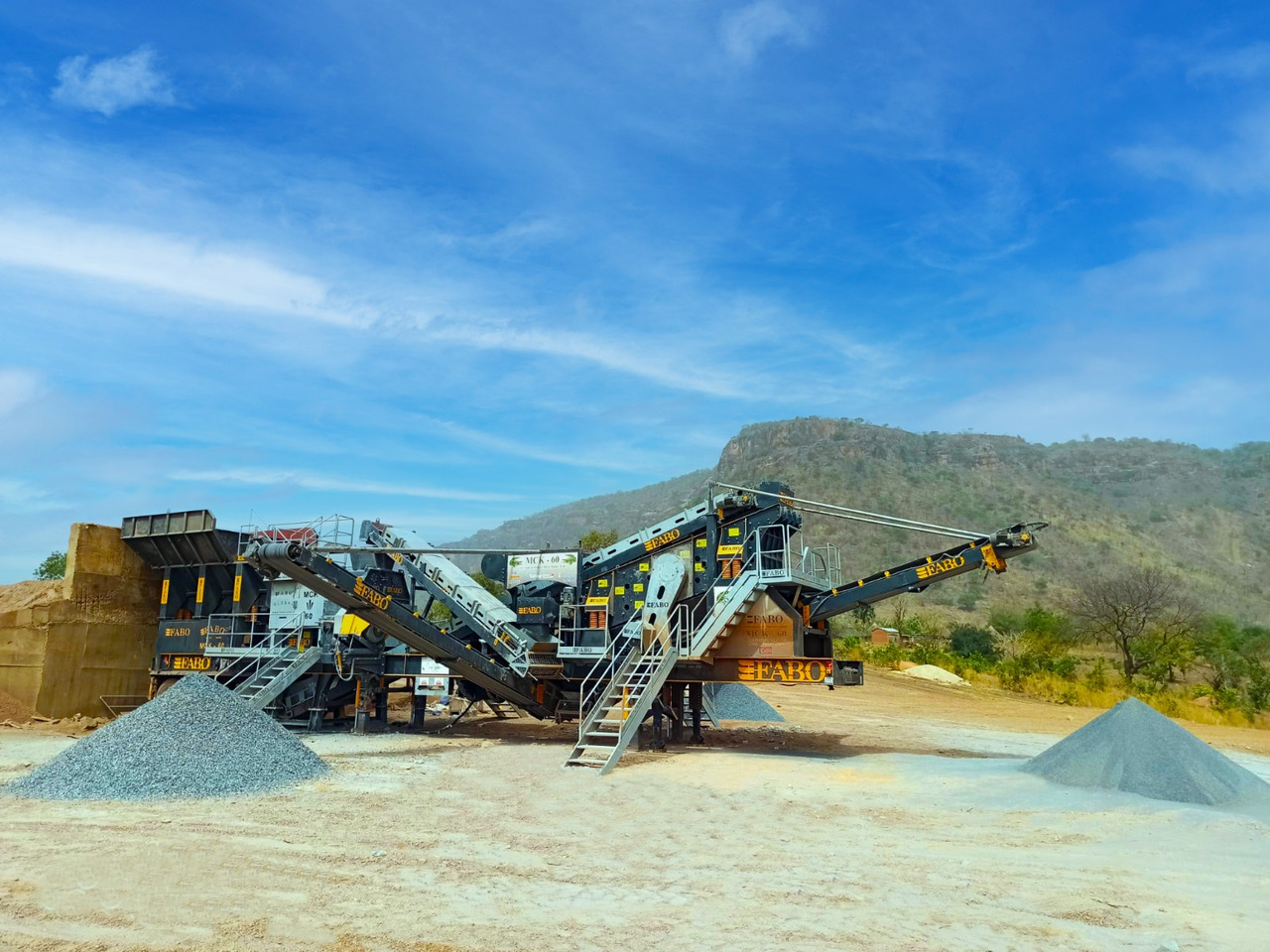

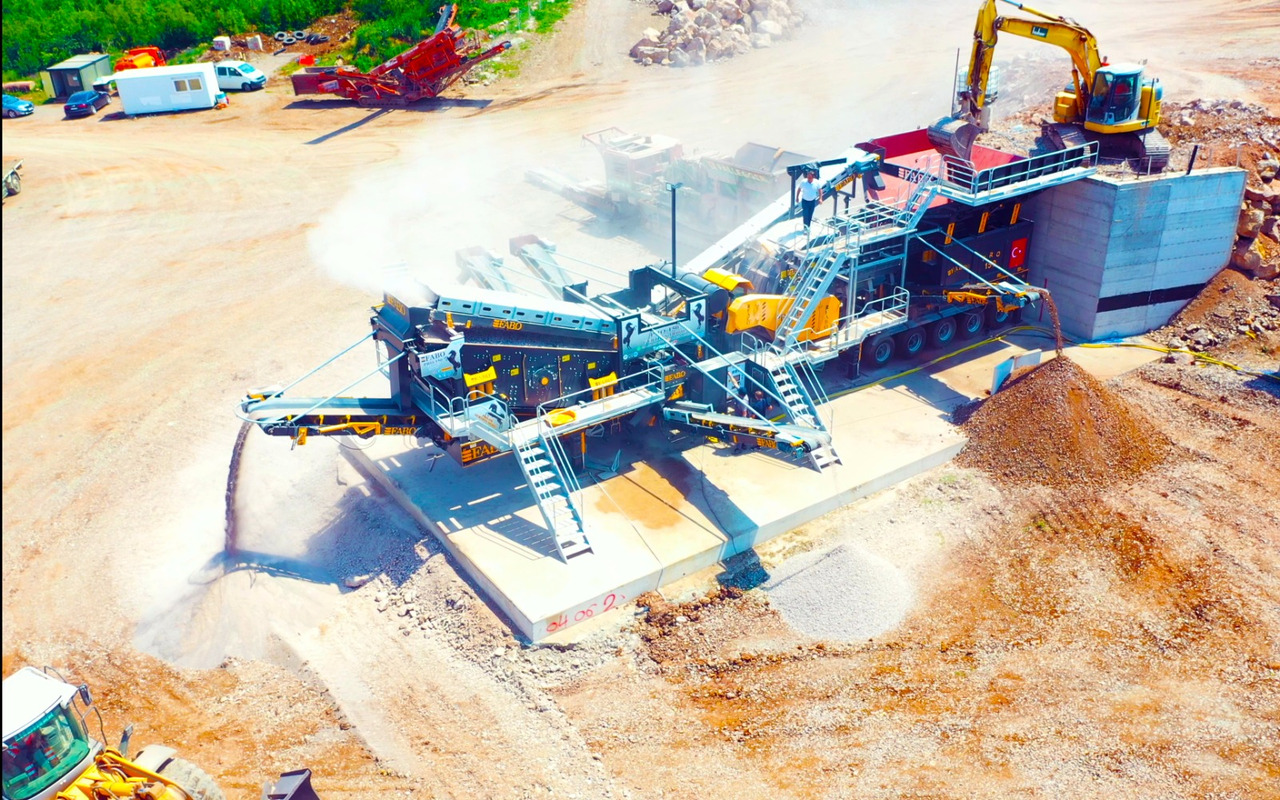

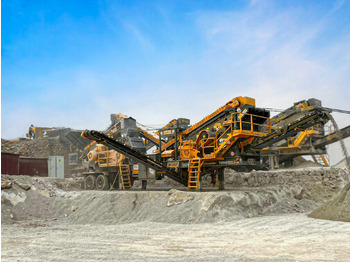

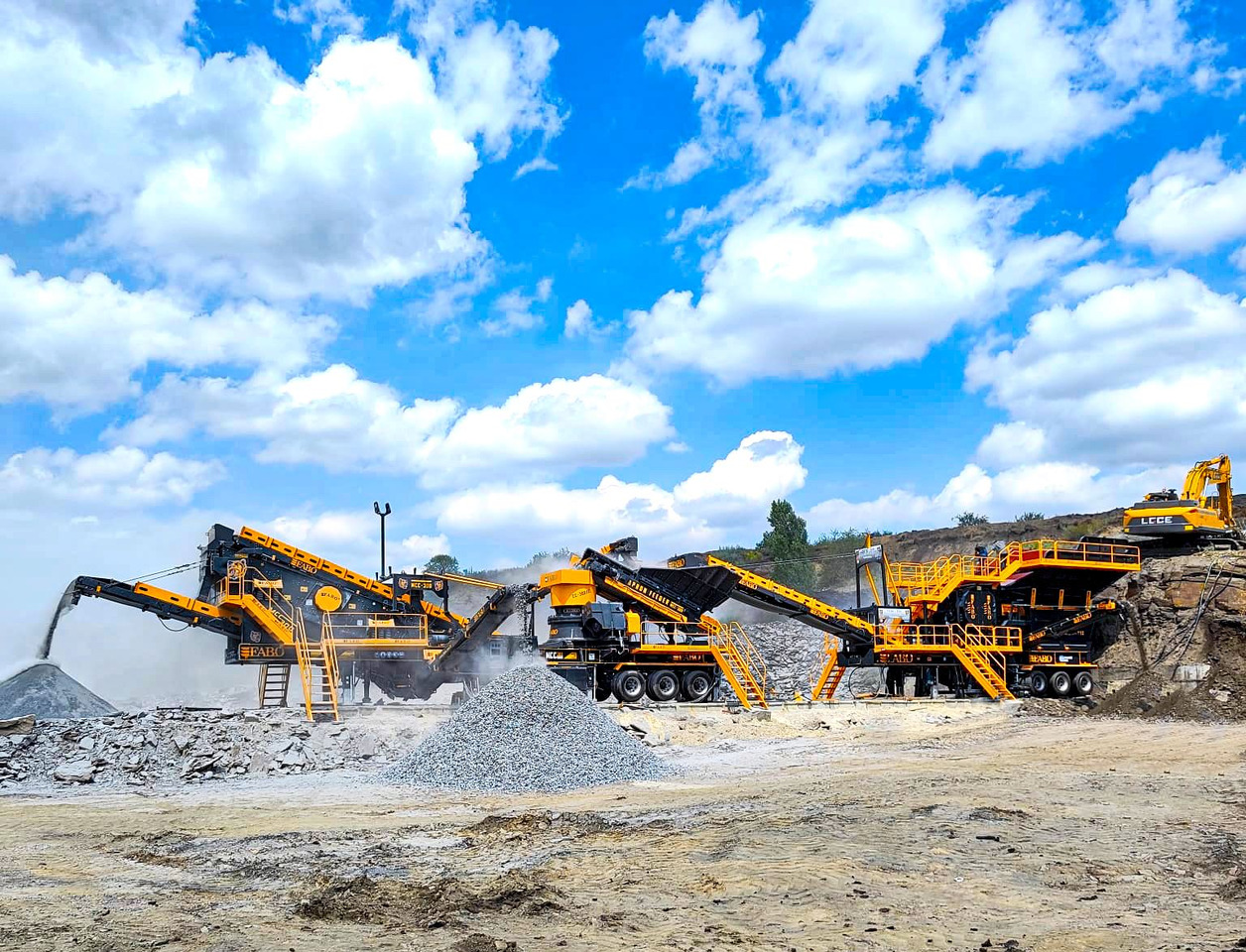

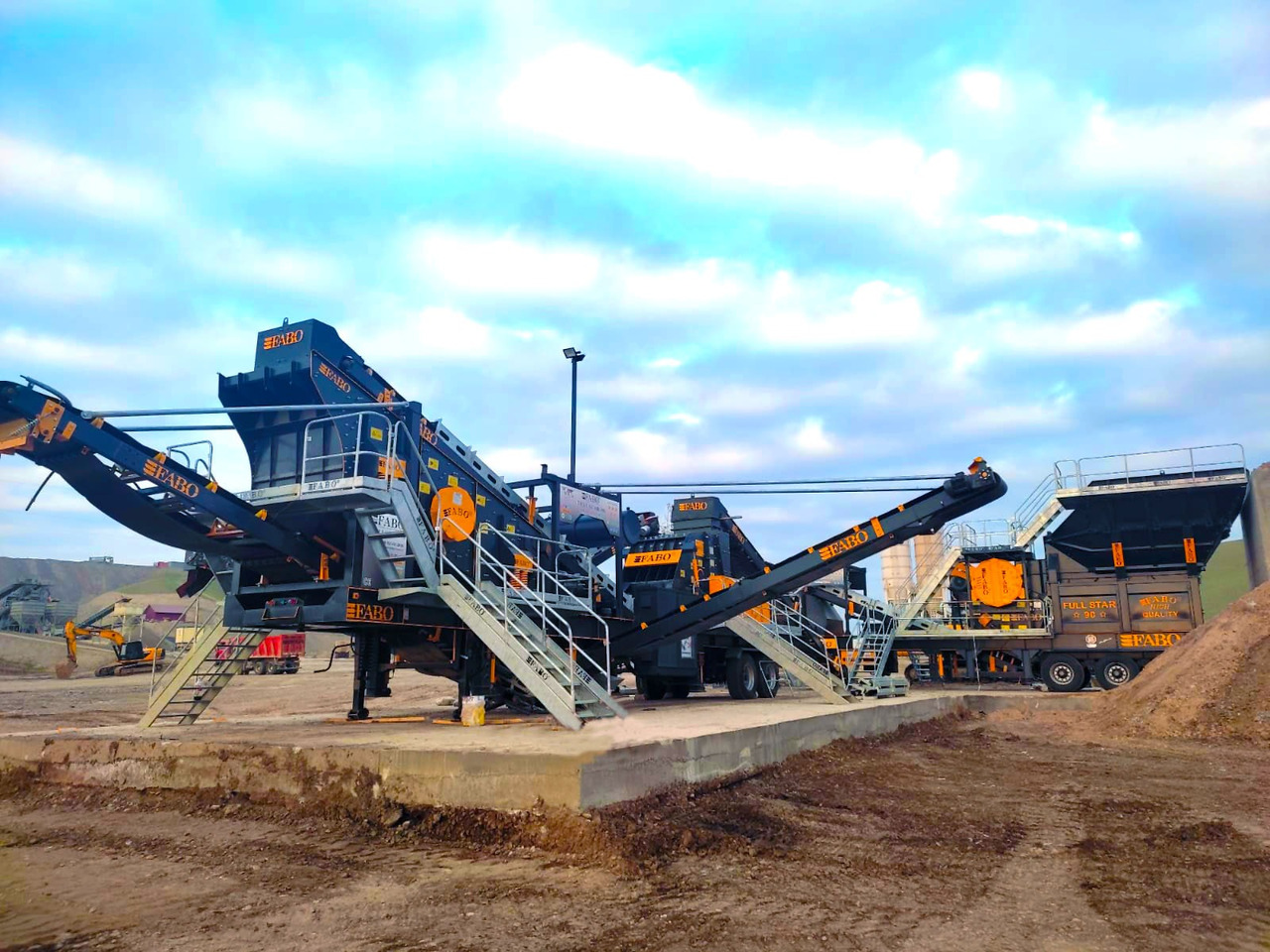

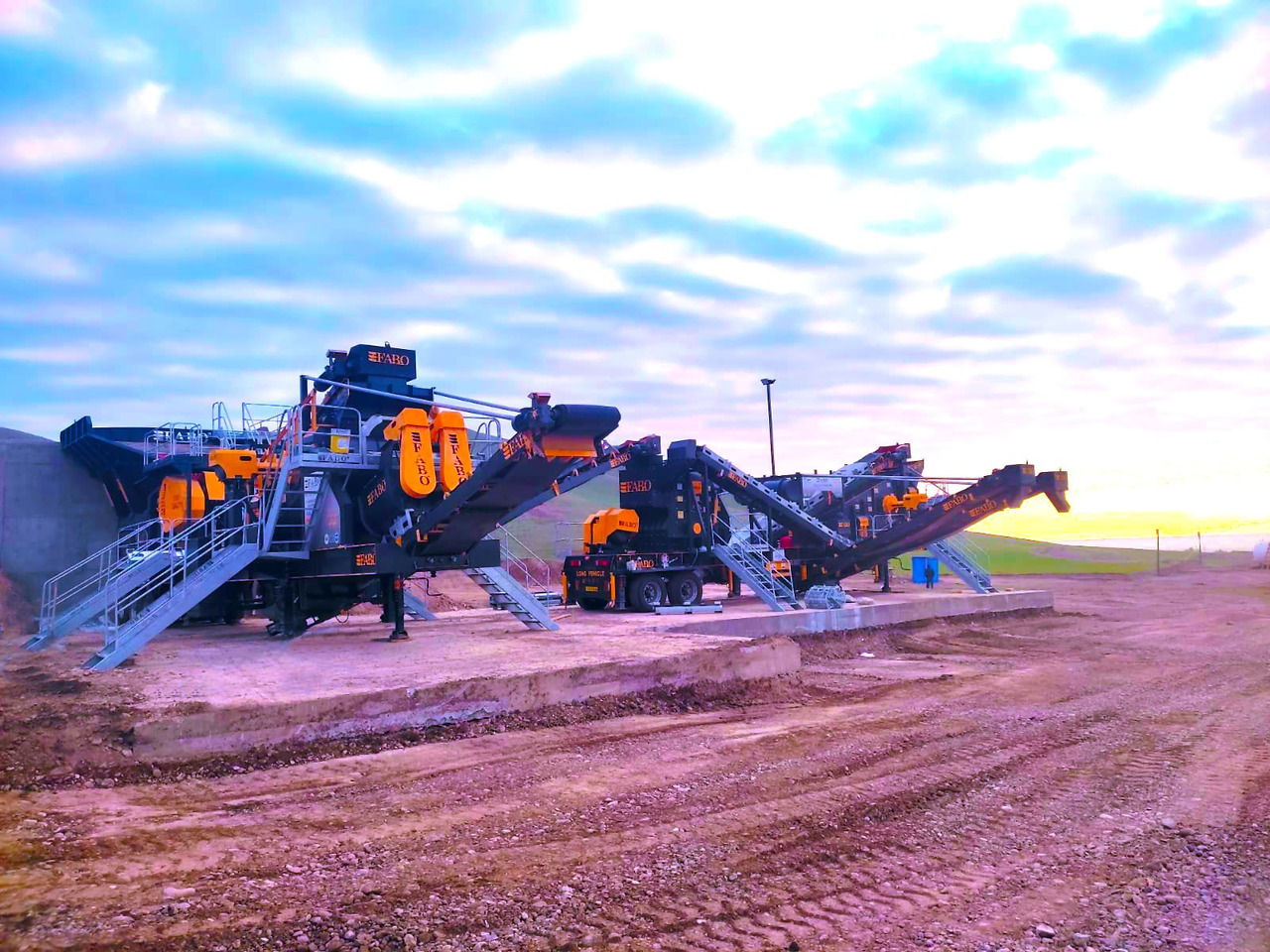

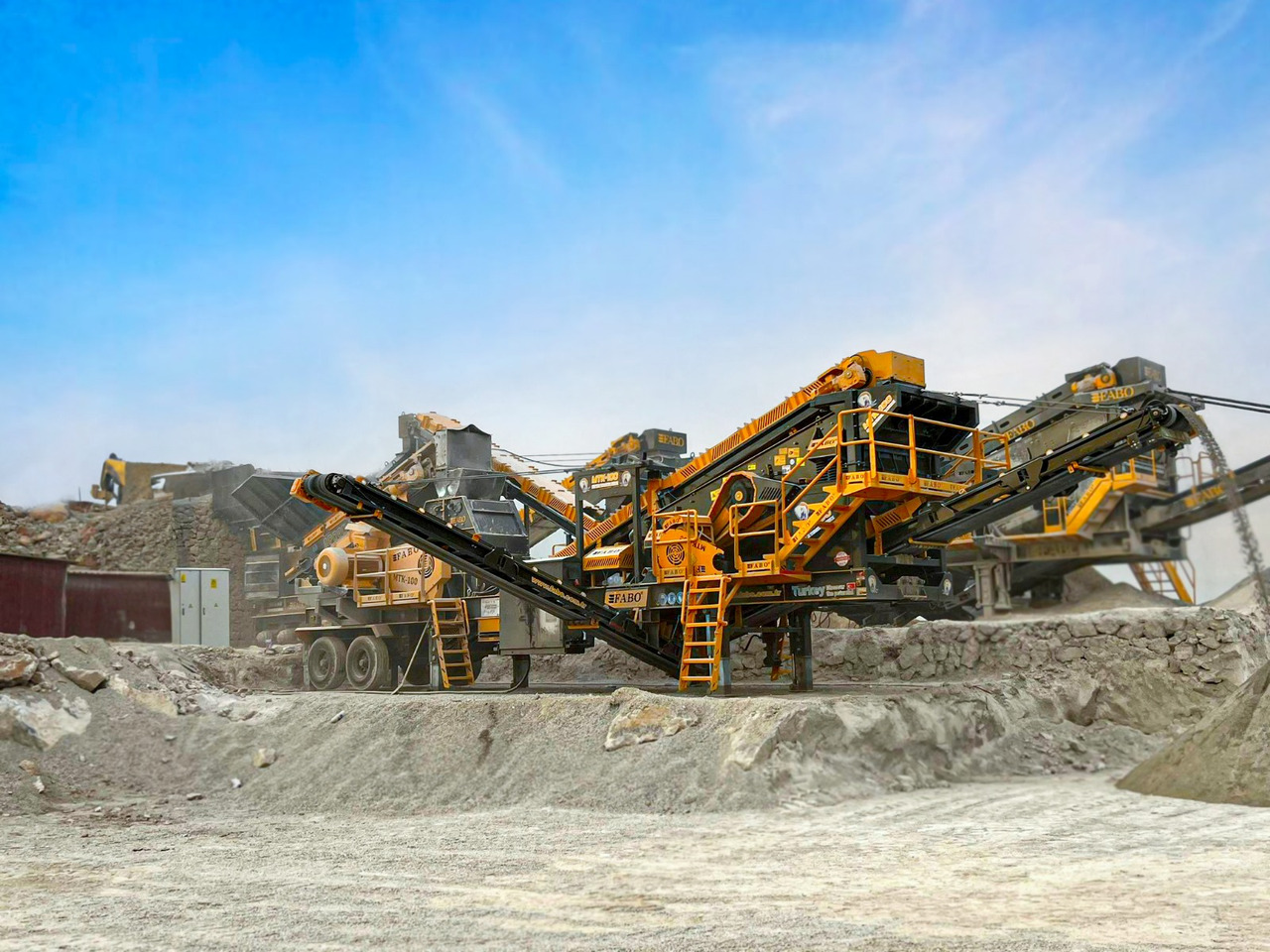

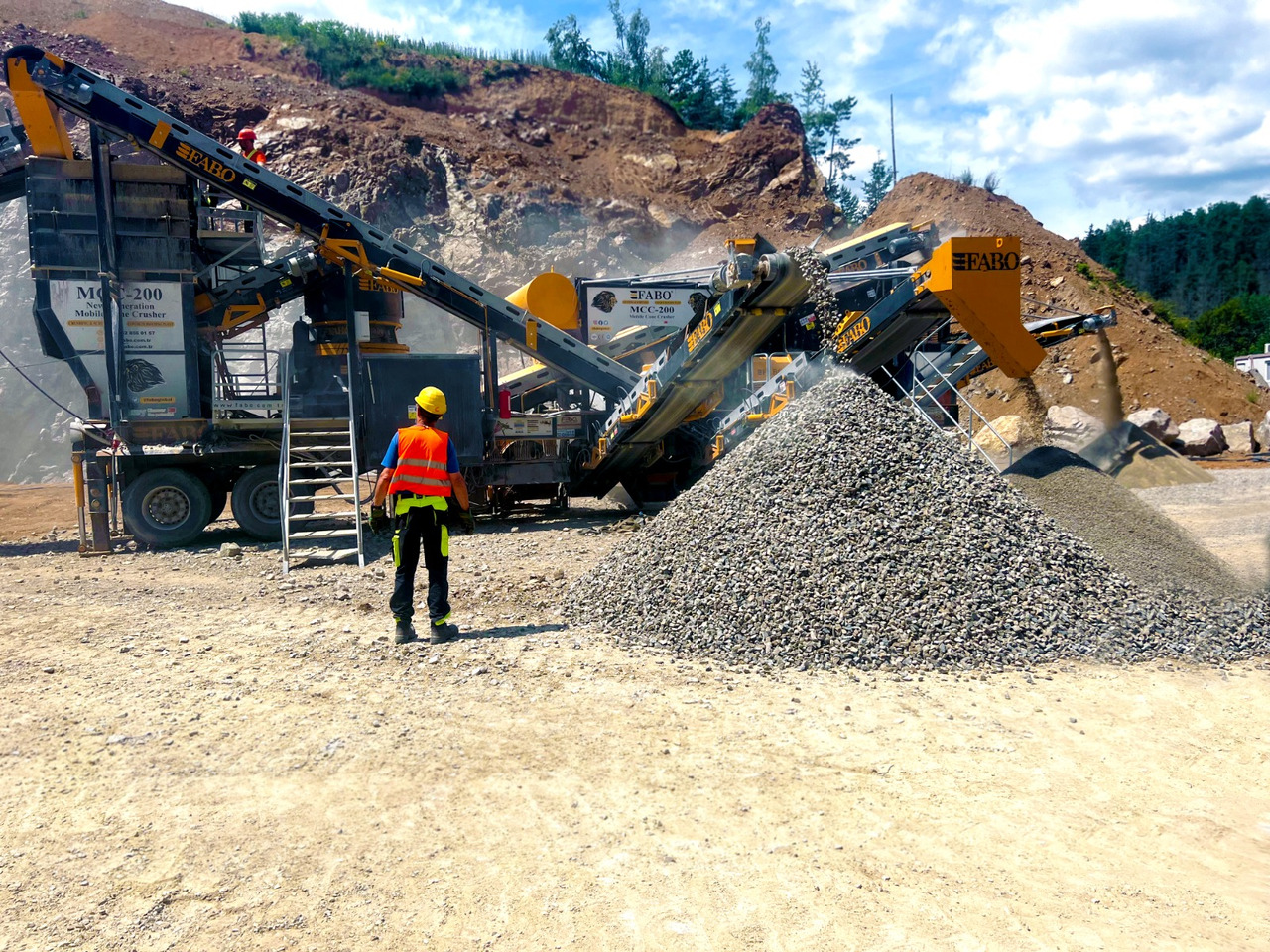

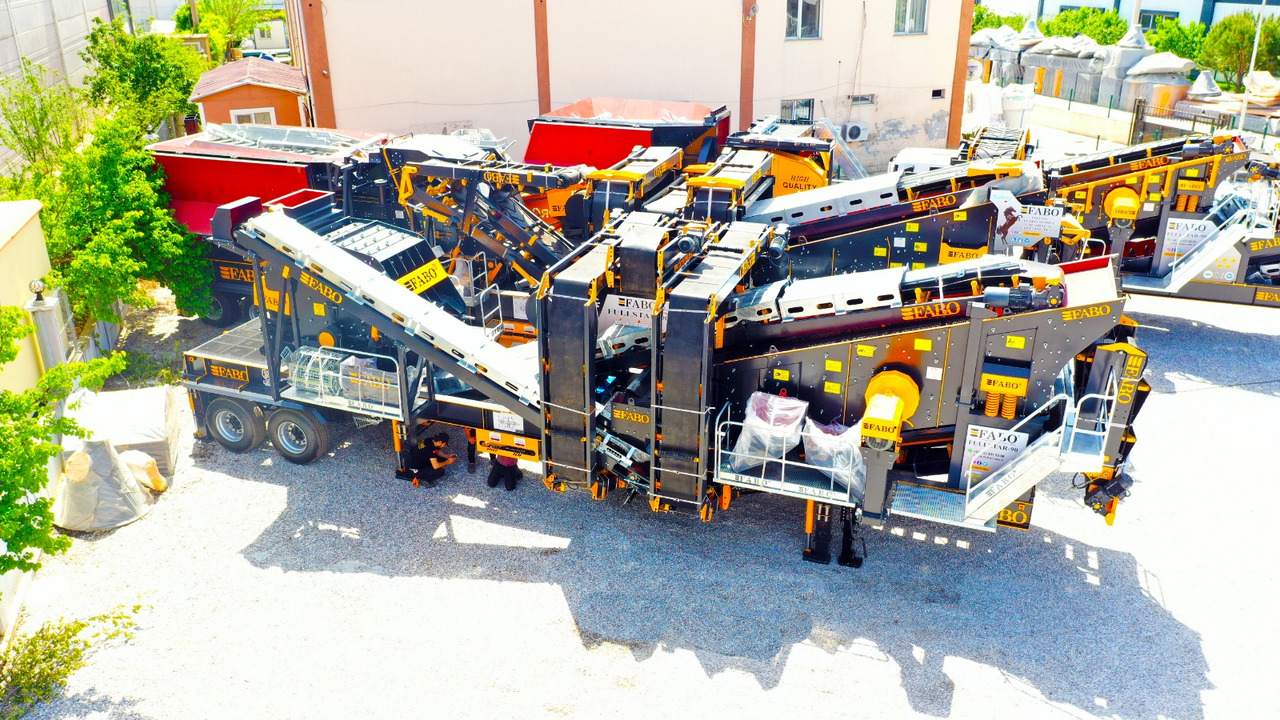

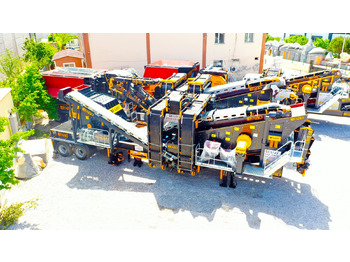

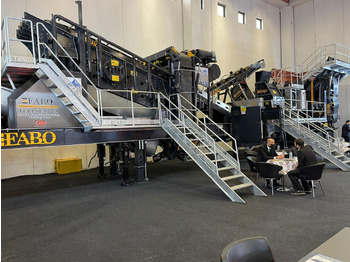

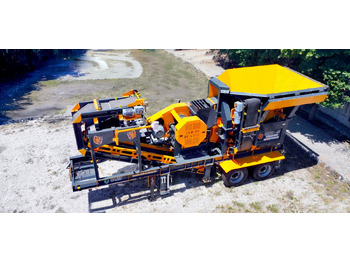

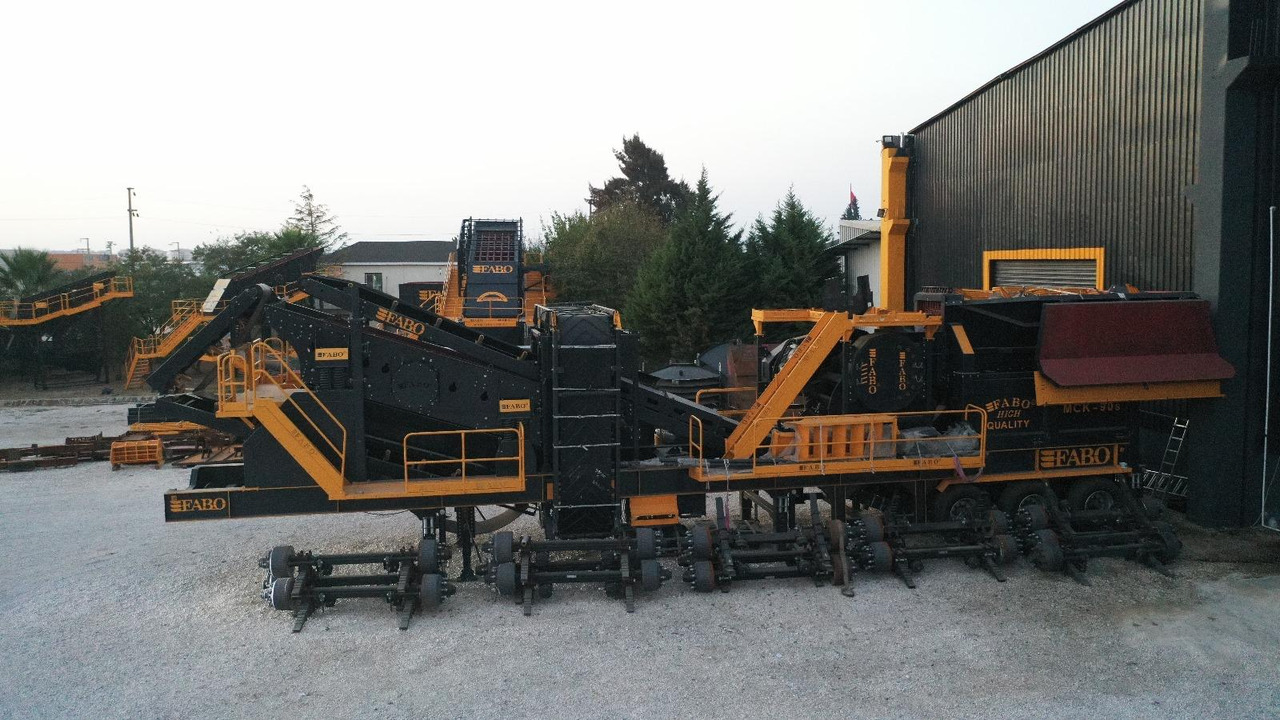

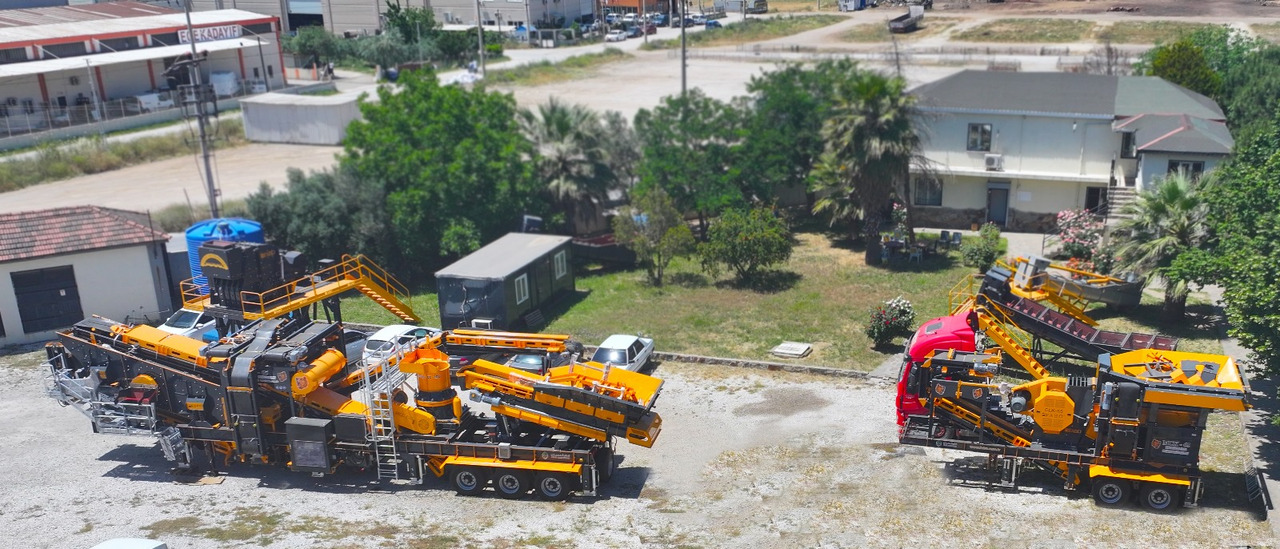

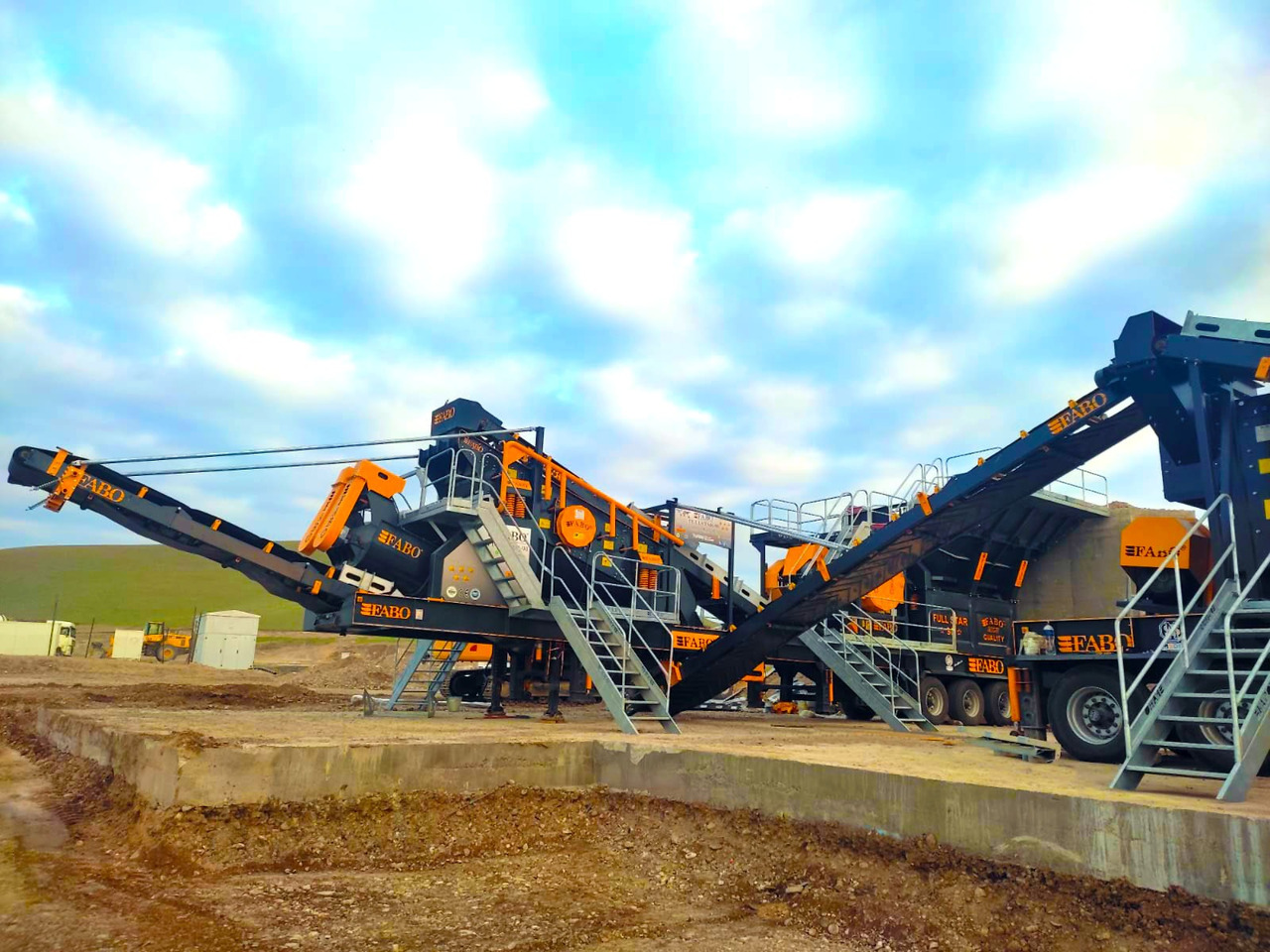

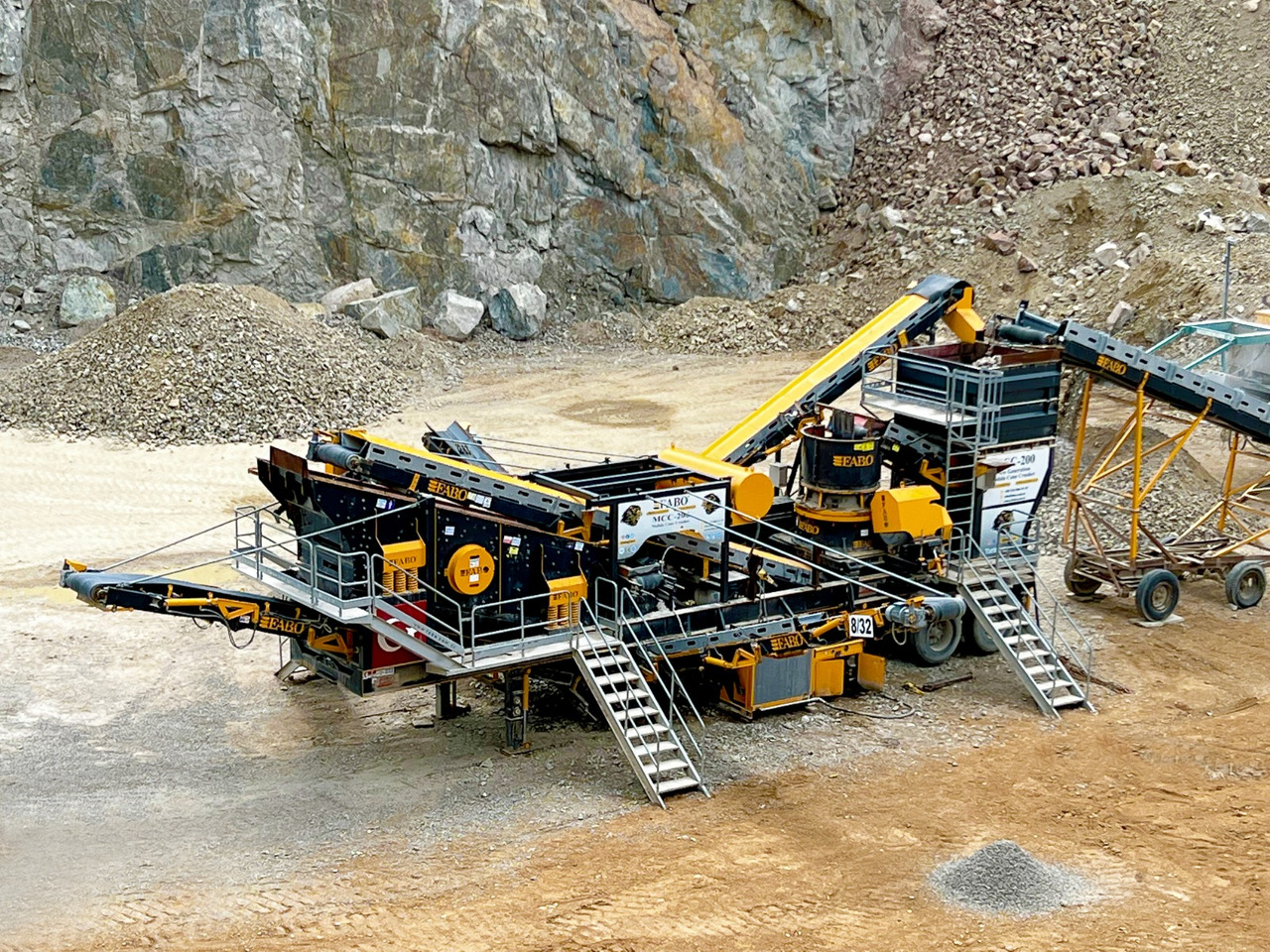

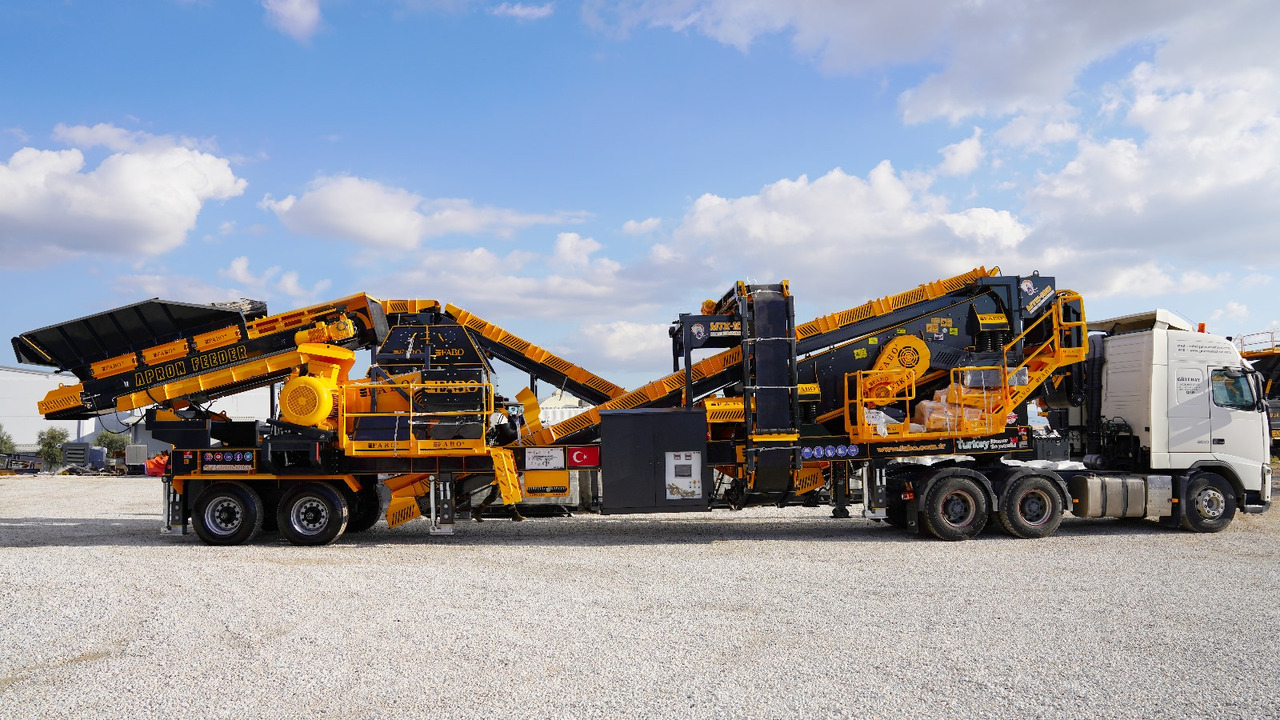

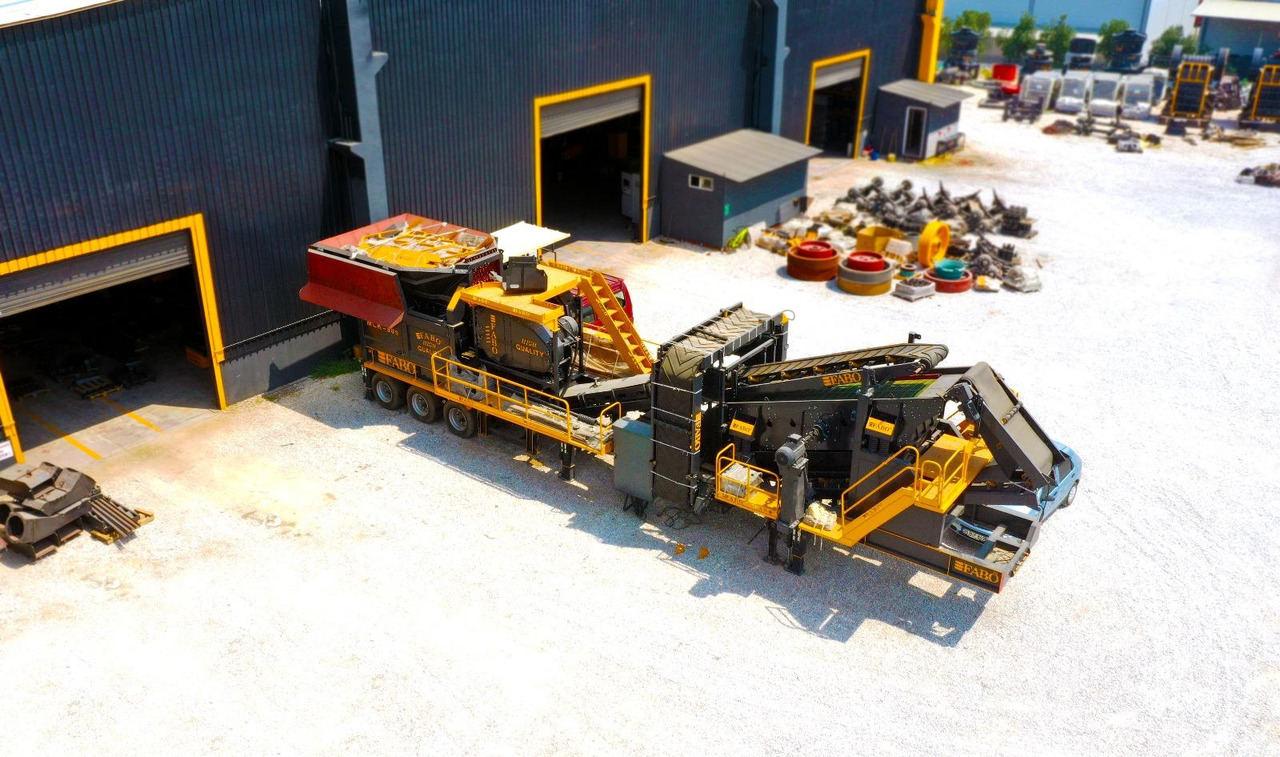

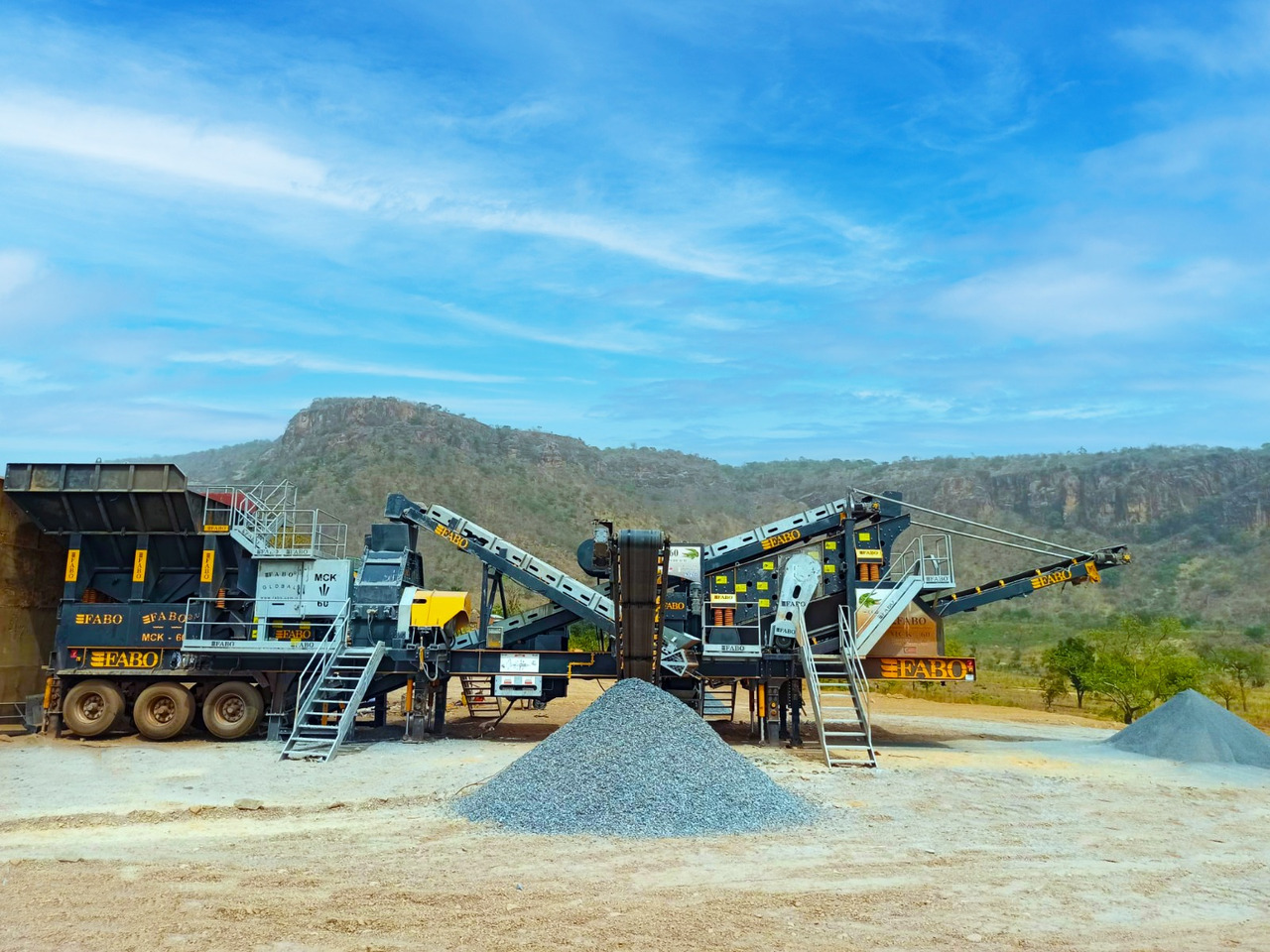

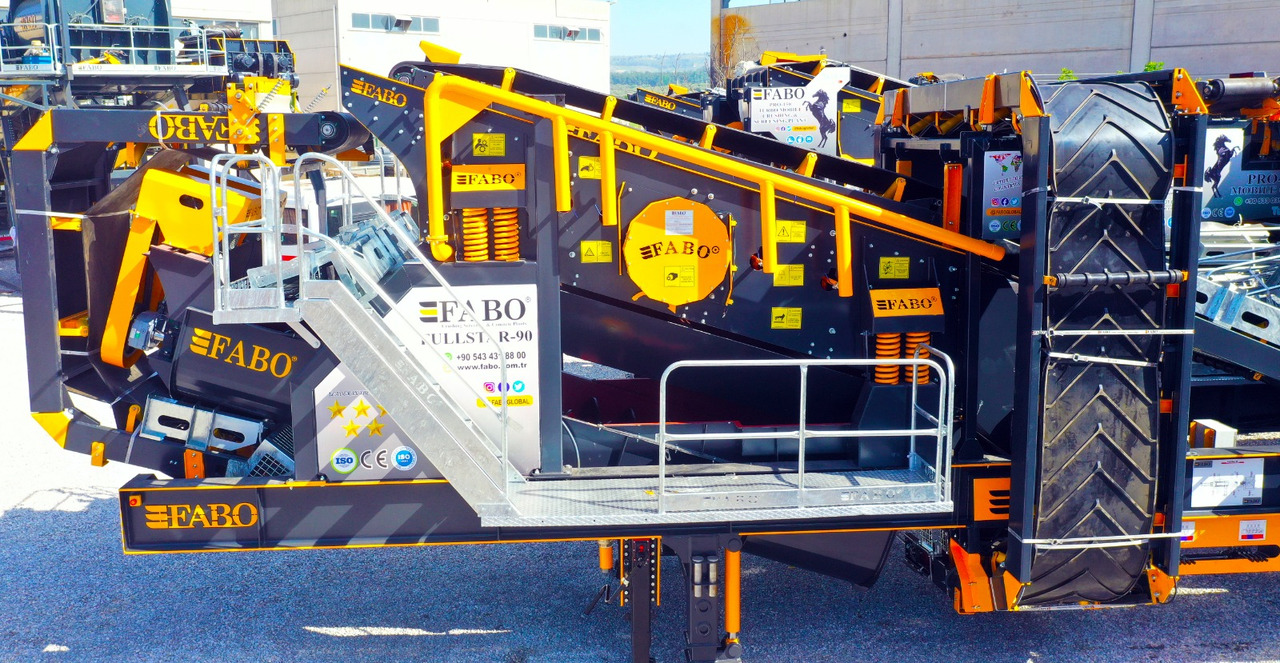

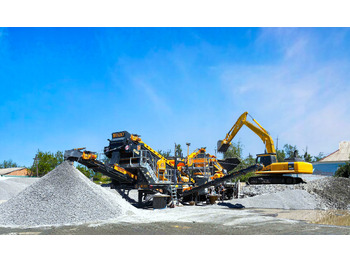

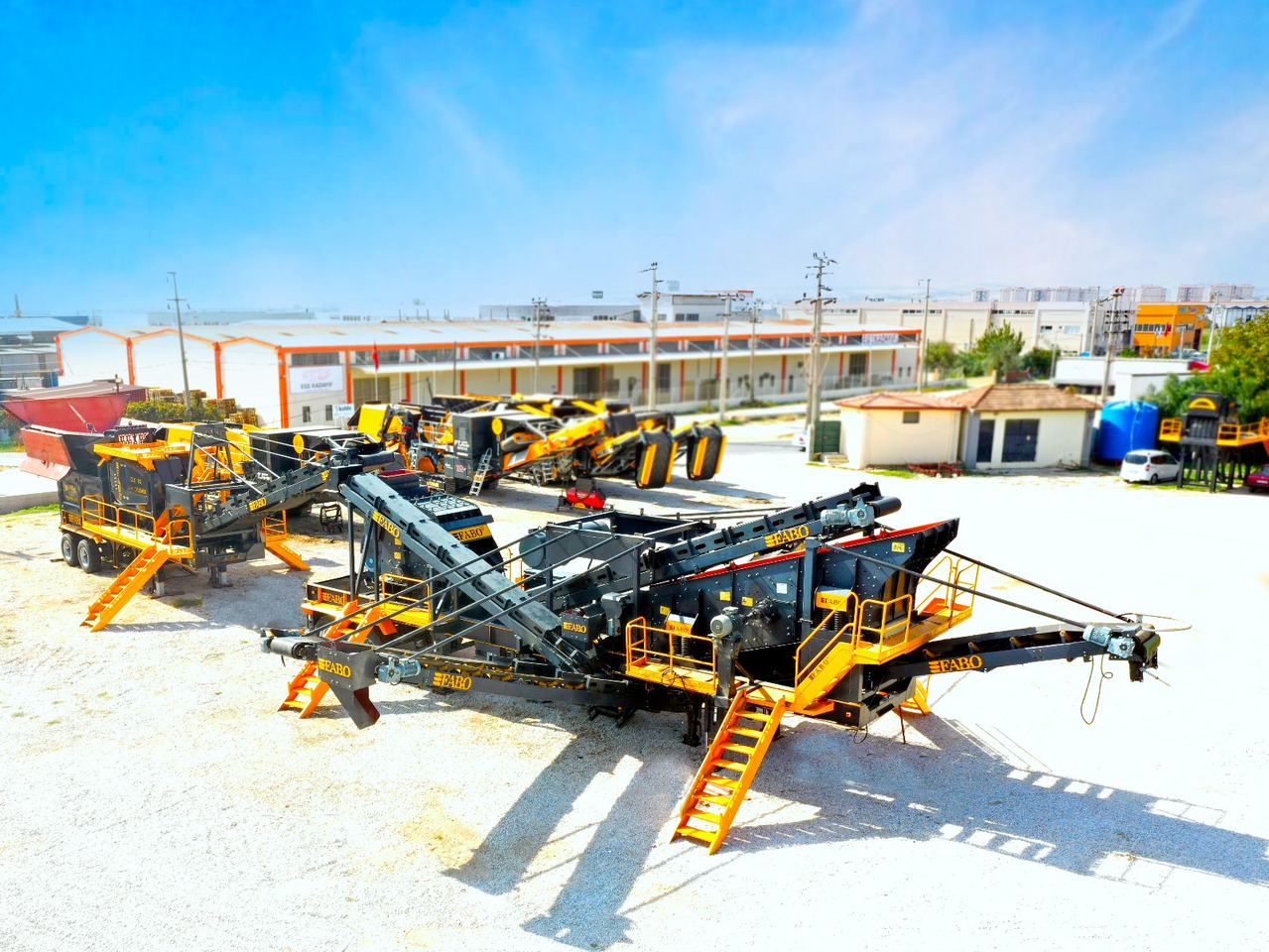

FABO PRO Serie is a mobile type closed circuit crushing plant that is suitable for especially limestone and other types of stones with hardness level is soft or medium.

MAIN FEATURES:

• Closed circuit crushing till to get desired size of product
• Capacity is variable according the material feed and final product dimensions to be crushed.

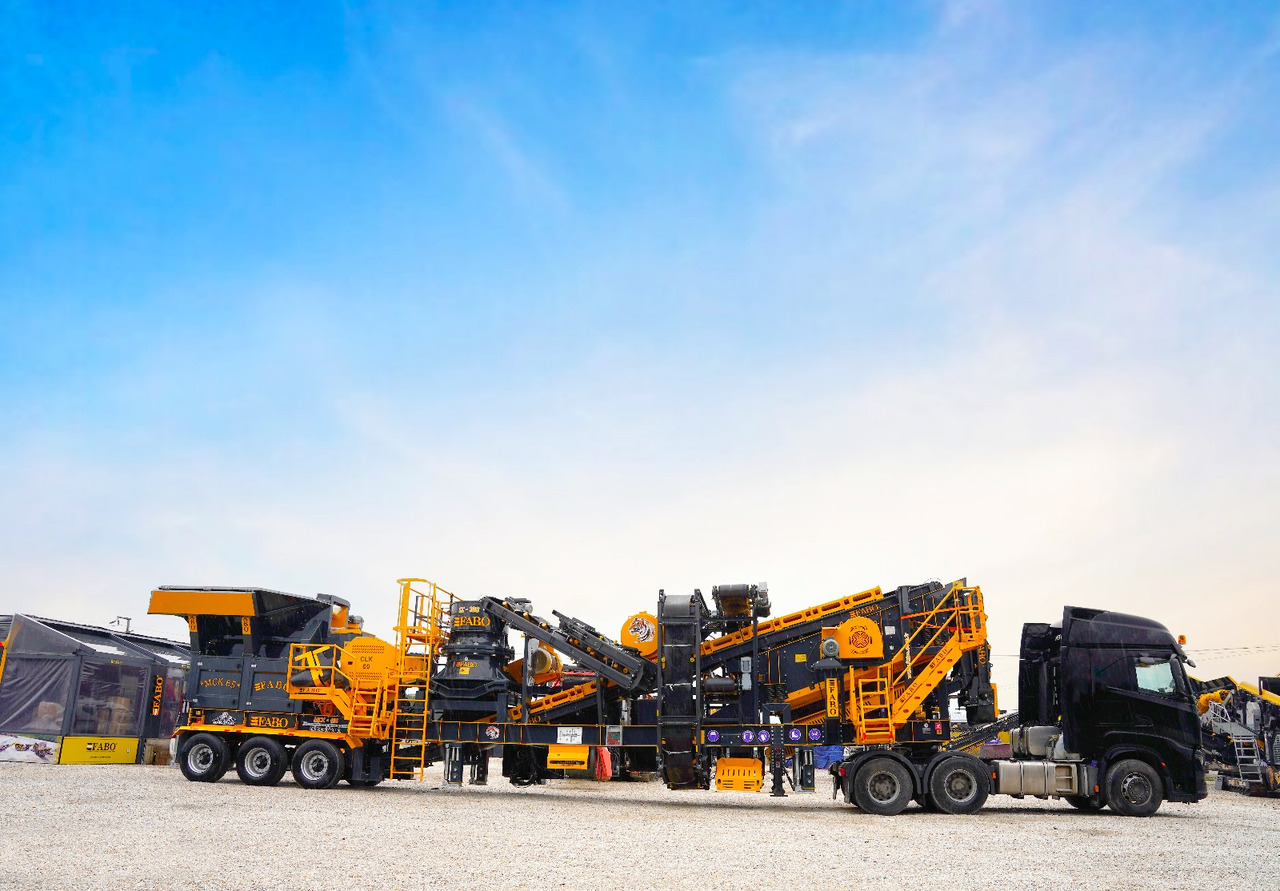

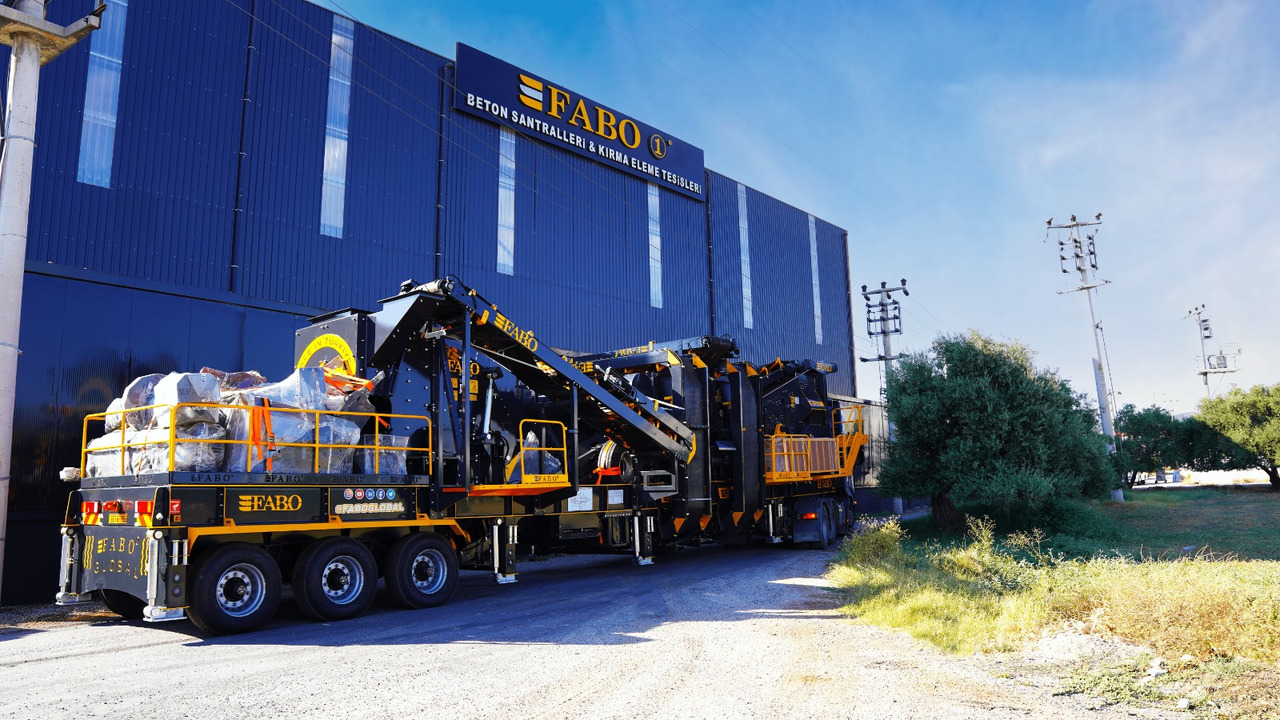

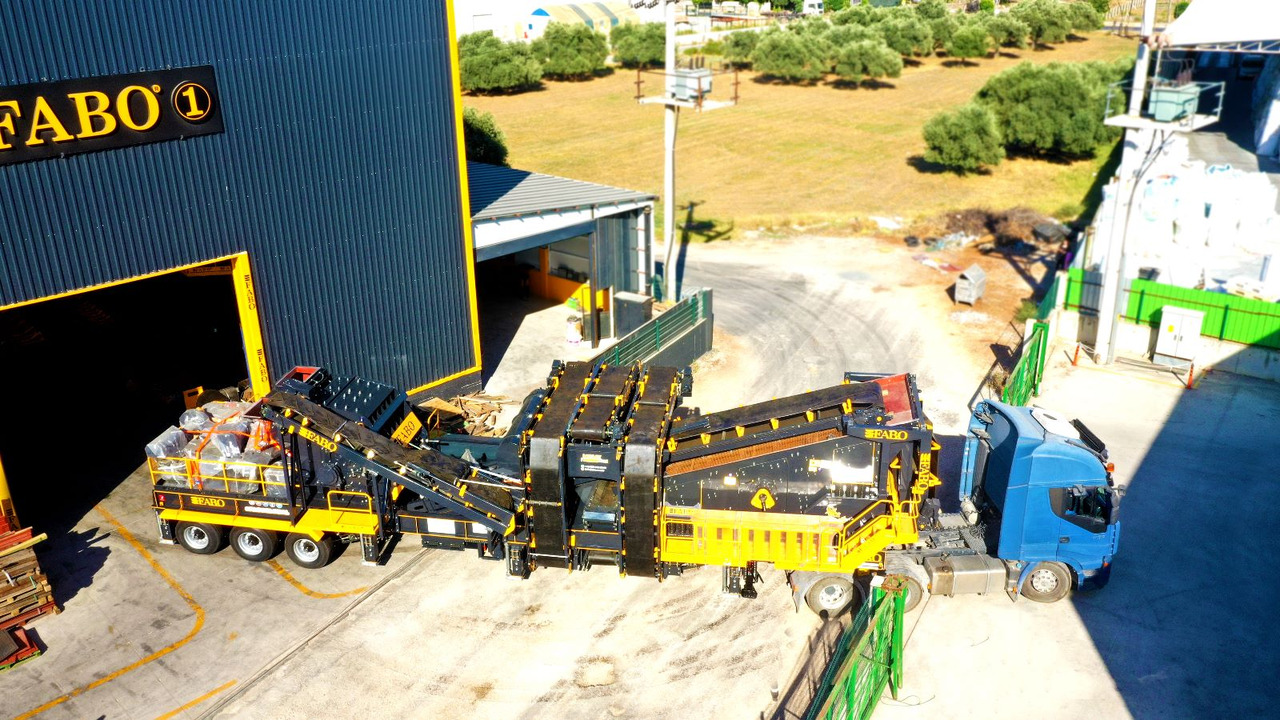

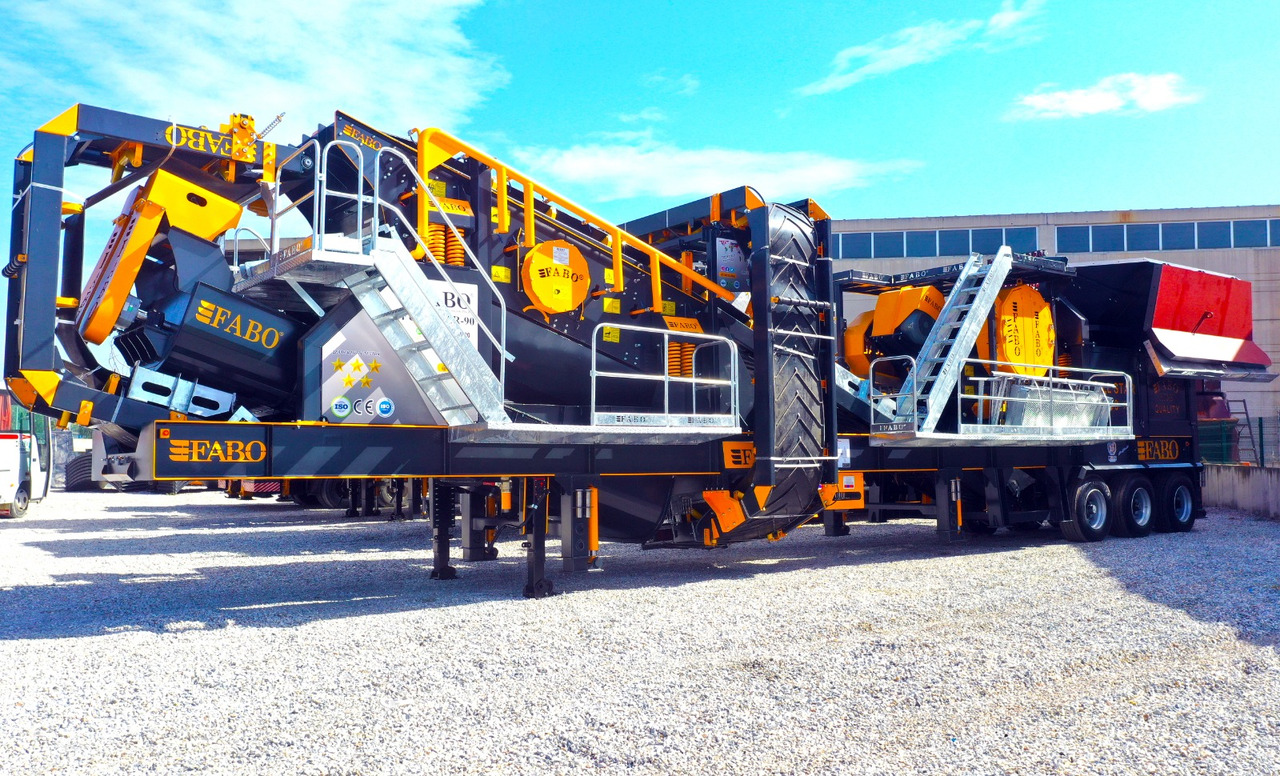

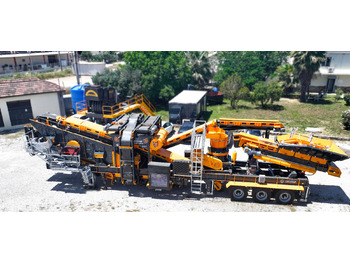

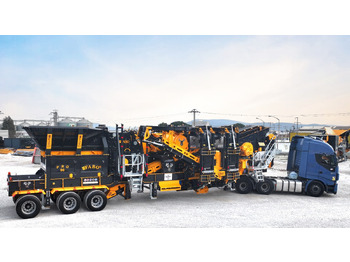

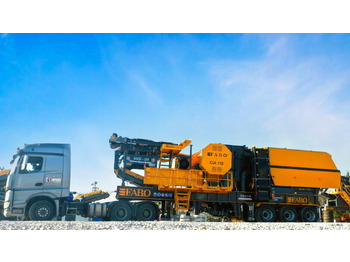

• All equipments are assembled on single special heavy duty construction chassis, transportable by 1 truck.
• Conveyors are foldable
• Up to 3 different sizes of aggregates
• Since the whole plant is built in one chassis, it has the advantage of the fastest production line
• PRO Serie Mobile Crusher Plant can be used by single operator, feed can be done by truck, loader or excavator
• Plant can be installed in 2 days with its special heavy duty construction chassis
• With its multifunctional primary impact crusher, plant can crush different product sizes with high capacity
• It is equipped with 3 axle, air-controlled brake system and signaling system.
• Hydraulic system is controlled by remote system
• All motors are under protection with metal sheet covers
• The dust suppression control system prevents dusting by conveying high pressure water.
• Mobile system has complete fully automation system. Also the plant can be controlled by using tablet with single staff.

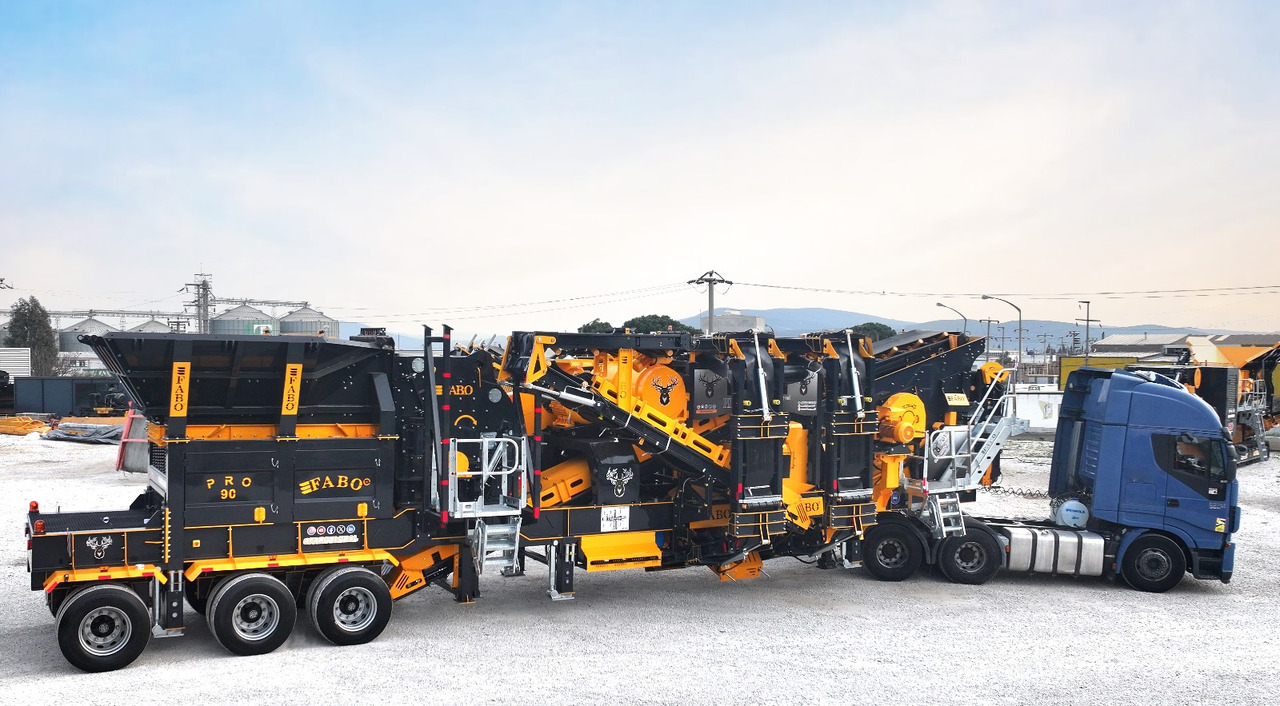

PRO 90 CRUSHING AND SCREENING PLANT

-Bunker: 20 m3

-Plant Dimensions: 16870x4552x4627 mm

-Production Capacity: 90-130 Tons Per Hour

-Crusher Type & Rotor Size: Turbo Impact – 1100x900 mm

-Maximum Feeding Size: 500 mm

-Vibrating Screen Size and Deck: 1400x4000 mm 3-4 decks

-Total Motor Power: 196 Kw

-Generator Capacity: 400 kvA

→ PRO 90 IS A COMBINATION OF :

• Bunker

• Vibrating Feeder

• Turbo Impact Crusher

• High Stroke Type Vibrating Screen

• Folding type feeding, feedback, bypass and stock conveyor belts

• Hydraulic feet

• Mobile Chassis with axles and tires

• Fully Automation System

• Dust Suppression System

• Easy walking platforms for maintenance

• Diesel Generator (Optional)
