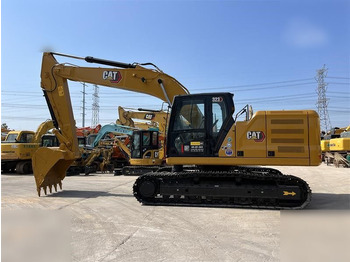

Ekskavator perayap Caterpillar 323

Engine

Engine Model Cat® C7.1

Net Power

ISO 9249:2007 128.5 kW 172 hp

ISO 9249:2007 (DIN) 175 hp (metric)

Engine Power

ISO 14396:2002 129.4 kW 174 hp

ISO 14396:2002 (DIN) 176 hp (metric)

Bore 105 mm 4 in

Stroke 135 mm 5 in

Displacement 7.01 L 428 in3

Biodiesel Capability Up to B20(1)

• Meets U.S. EPA Tier 4 Final, EU Stage V, and Japan 2014

emission standards.

• Recommended for use up to 4500 m (14,760 ft) altitude with

engine power derate above 3000 m (9,840 ft).

• Advertised power is tested per the specified standard in effect

at the time of manufacture.

• Net power advertised is the power available at the flywheel when

the engine is equipped with fan, air intake system, exhaust system

and alternator.

• Engine speed at 2,200 rpm.

(1)

Cat diesel engines are required to use ULSD (ultra-low sulfur

diesel fuel with 15 ppm of sulfur or less) or ULSD blended with

the following lower-carbon intensity fuels up to:

 20% biodiesel FAME (fatty acid methyl ester)*

 100% renewable diesel, HVO (hydrogenated vegetable oil)

and GTL (gas-to-liquid) fuels

Refer to guidelines for successful application. Please consult your

Cat dealer or “Caterpillar Machine Fluids Recommendations”

(SEBU6250) for details.

• Engines with no aftertreatment devices can use higher blends,

Tailpipe greenhouse gas emissions from lower-carbon intensity fuels

are essentially the same as traditional fuels.

Swing Mechanism

Swing Speed 11.25 rpm

Maximum Swing Torque 82 kN·m 60,300 lbf-ft

Weights

Operating Weight 24 600 kg 54,200 lb

• Long undercarriage, 5.7 m (18'8") HD Reach boom, HD R2.9 (9'6")

stick, 1.30 m3 (1.71 yd3) Heavy Duty (HD) bucket, 600 mm (24")

HD triple grouser shoes and 5.4 mt (11,900 lb) counterweight.

Operating Weight 25 000 kg 55,100 lb

• Long undercarriage, 5.7 m (18'8") HD Reach boom, HD R2.9 (9'6")

stick, 1.30 m3 (1.71 yd3

) HD bucket, 700 mm (28") HD triple grouser

shoes and 5.4 mt (11,900 lb) counterweight.

Track

Optional Track Shoe Width 600 mm 24 in

Optional Track Shoe Width 700 mm 28 in

Optional Track Shoe Width 790 mm 31 in

Number of Shoes (each side) 49

Number of Track Rollers (each side) 8

Number of Carrier Rollers (each side) 2

Drive

Gradeability 35°/70%

Maximum Travel Speed 5.7 km/h 3.5 mph

Maximum Drawbar Pull 203 kN 45,614 lbf

Hydraulic System

Main System – Maximum Flow –

Implement

429 L/min

(215 ×

2 pumps)

113 gal/min

(57 ×

2 pumps)

Maximum Pressure – Equipment –

Normal

35 000 kPa 5,075 psi

Maximum Pressure – Equipment –

Heavy Lift Mode/Auto Dig Boost

38 000 kPa 5,510 psi

Maximum Pressure – Travel 34 300 kPa 4,974 psi

Maximum Pressure – Swing 27 500 kPa 3,998 psi

Boom Cylinder – Bore 120 mm 5 in

Boom Cylinder – Stroke 1260 mm 50 in

Boom Cylinder – Bore –

Heavy Lift Mode*

125 mm 5 in

Boom Cylinder – Stroke –

Heavy Lift Mode*

1260 mm 50 in

Stick Cylinder – Bore 140 mm 6 in

Stick Cylinder – Stroke 1504 mm 59 in

Bucket Cylinder – Bore 120 mm 5 in

Bucket Cylinder – Stroke 1104 mm 43 in

• For use with 5400 kg counterweight only.

Service Refill Capacities

Fuel Tank Capacity 345 L 86.6 gal

Cooling System 25 L 6.6 gal

Engine Oil 25 L 6.6 gal

Swing Drive 6 L 1.6 gal

Final Drive 5 L 1.3 gal

Hydraulic System (including tank) 234 L 61.8 gal

Hydraulic Tank 115 L 30.4 gal

Diesel Exhaust Fluid (DEF) Tank 41 L 10.8 gal

More information

Year of manufacture: 2024

Engine type: Caterpillar C7.1

Warranty: 12 months

Digging depth: 6730 mm

Digging depth: 6.73 m

Bucket volume: 1.2 m^3
