Leasing QINGDAO PROMISING New 4.0T Mini Articulated Dumper

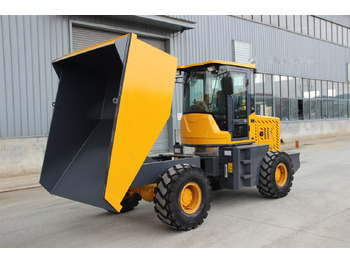

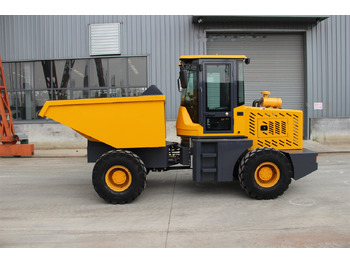

4.0T Articulated Wheel Dumper

HS Code: 8704109000

Application:

A dumper is a vehicle designed for carrying bulk material, often on building sites. Our compact dumpers are designed for any application from conventional building construction and landscaping to tunnel construction and demolition work. This three-way dumper provides an ideal solution as multi-function dumper when considerable manoeuvrability is required. They are ideal vehicles for transport and distribution of materials at building sites and for road works.

Feature:

1. Articulated joint

2. Excellent product quality

3. Durable and easy to service

4. Impressive turning radius for precision and efficiency

5. User-friendliness combined with excellent driver comfort

6. Power Swivel skips enable effective placement of load either side

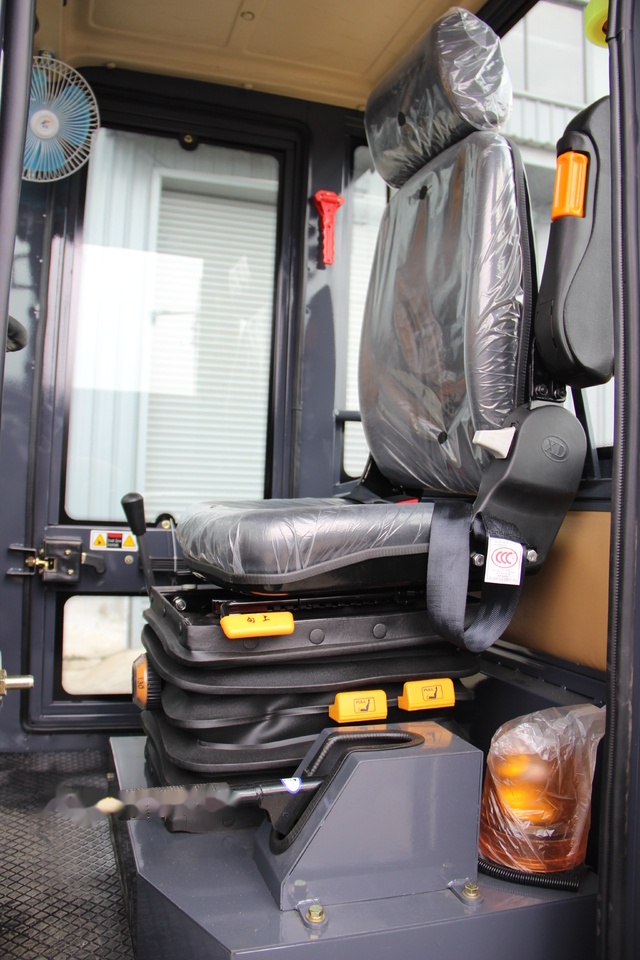

7. Available with closed cab and heating

Technical Specifications:

1. Model: DP40

2. Payload: 4000kg

3. Operating Weight: 5250kg

4. Bucket Capacity: 2.5CBM

5. Max. Tractive Force: More than 55KN

6. Max. Breakout Force: More than 46KN

7. Max. Gradeability: 30Deg.

8. Overall Dimension (L x W x H): 4800x2050x3100mm

9. Min. Turning Radius: 4600mm

10. Engine Model: YUNNEI YN27

11. Engine Type: Four-cylinder, In-line, Water-cooled, 4-stroke Diesel Engine

12. No. of Cylinder-bore/Stroke of Engine: 4 – 84 x 90mm

13. Engine Power: 42kW (57HP)/2400rpm

14. Max. Torque of Engine: 270N.m

15. Min. Fuel Consumption Ratio: Less than 235g/kw.h

16. Torque Converter: YJ-265 Hydraulic Torque Converter

17. Gearbox Mode: Countershaft Power-shift

18. Gear Shift: 2 Forward, 2 Reverse

19. Max. Speed: 22km/h

20. Main Reducing Mode: Circular Arc Bevel Gear, Single Stage

21. Decelerating Mode: Single Stage Planetary Type

22. Wheel Base: 2100mm

23. Wheel Tread: 1500mm

24. Min. Ground Clearance: 290mm

25. System Working Pressure: 16Mpa

26. Fuel Tank Capacity: 80L

27. Service Brake: Foot Pedal Vacuum Booster, Air Over Hydraulic Caliper Disc Brake on 4 Wheels

28. Parking Brake: Hand Lever Flexible Shaft Controlled Externally Contracting Drum Brake

29. Tyre Type Specification: 20.5/70-16 Tire

30. Front Tyre Pressure: 0.22Mpa

31. Rear Tyre Pressure: 0.18Mpa

Optional Parts & Functions:

Hydraulic Joystick, 180 degree Rotating Dump Bucket, Bulldozing Blade, Self-Loading Bucket and Canopy.

Note:

1. All photos are for reference only. Machines shown may include optional parts.

2. Available optional parts include Hydraulic Joystick, 180 degree Rotating Dump Bucket, Bulldozing Blade, Self-Loading Bucket and Enclosed Cabin.

3. All specifications and design characteristics are subject to change without prior notice.
